Function library
Function blocks
3.2.78
Phase integrator (PHINT5)
3−253
l
EDSVS9332K−EXT EN 4.0
RFGPH function block as profile generator for the compensation speed
DFIN
NUM
DENOM
SET
H-VALUE
TP-POS
X-OFFSET
RESET
LOAD
TP-ENABLE
FIXED1
0
FIXED100%
FIXED100%
FCODE C1476/1
CDATA-ACTLEN
DFIN-OUT
TP-EDGE-SELECT
TP-SPEED-LIM
DFOUT-INIT
X0
TP-RECOGN
TP-SYNC-BUSY
DFOUT
X-DIFF
TP-DIST
TP-DIFF
OUT
RESET
PHINT5
RFGPH2, RFGPH3
STOP
RFG-0
REL-SEL
SET
ACT
NOUT
PHOUT
RFG-I=0
fb_phint5_2
Fig. 3−205

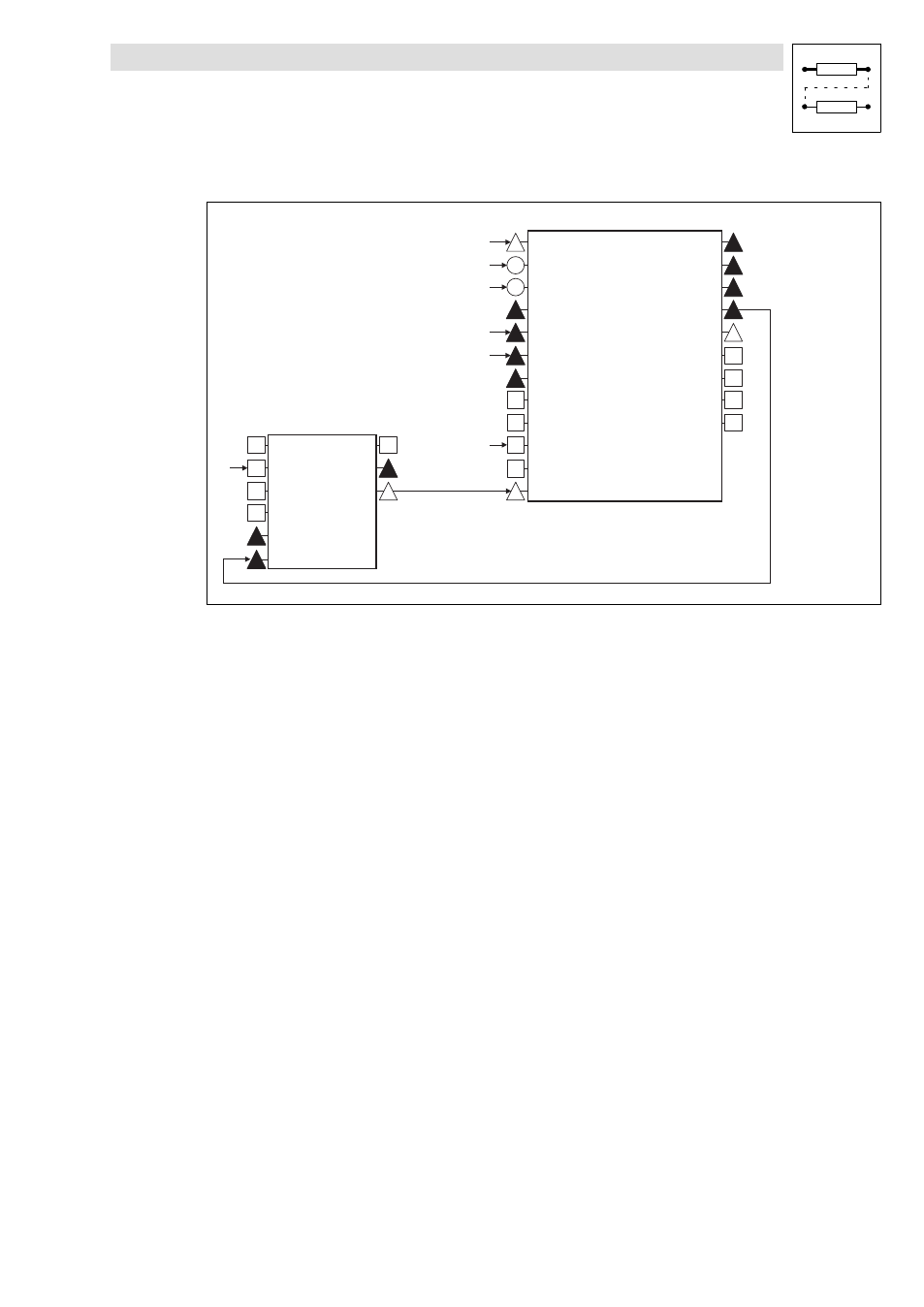

RFGPH function block as profile generator for the compensation speed
l
The deviation determined between the integrator and the defined touch probe position (input
PHINT−TP−POS) is output as the shortest path at PHINT5−X−DIFF and is compensated via the
RFGPH2 (or RFGPH3) function block.
l
Apply the value to be compensated to the input RFGPHx−ACT and activate the profile
generator by means of a HIGH−LOW edge
0 at the input RFGPHx−STOP.
