Lenze EVS9332xK - Manual (Page 344)

Function library
Function blocks
3.2.99 Edge evaluation (TRANS)
3−316
l
EDSVS9332K−EXT EN 4.0
3.2.99.3 Evaluate positive or negative edge
t
t
TRANS1−IN
TRANS1−OUT
C0711 C0711

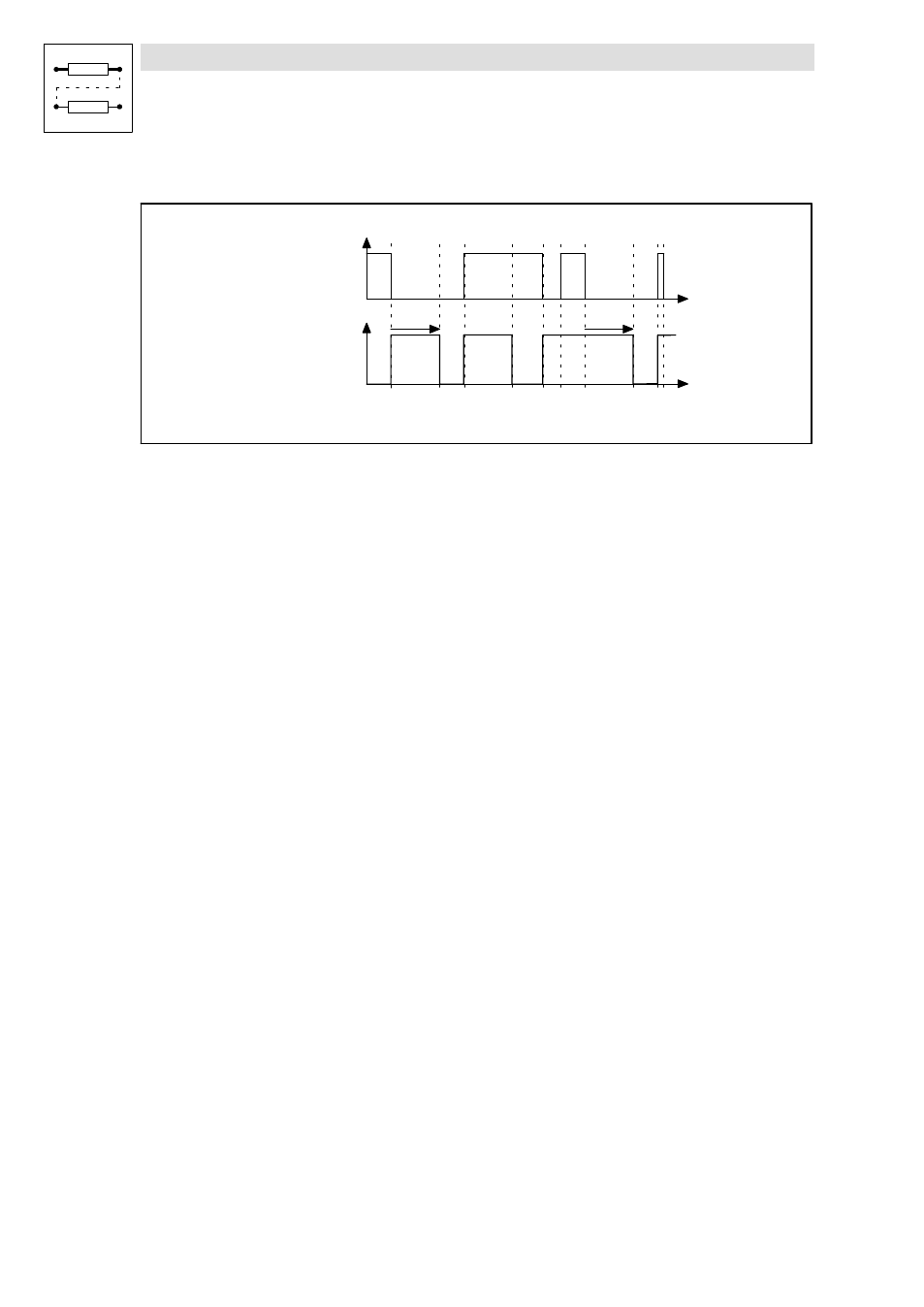

Fig. 3−259 Evaluation of positive and negative edges (TRANS1)
l The output TRANSx−OUT is set to HIGH as soon as a HIGH−LOW edge or a LOW−HIGH edge
is sent to the input.
l After the time set under C0711 or C0716 has elapsed, the output changes again to LOW
unless there is another HIGH−LOW edge or LOW−HIGH edge at the input.
