Function library
Function blocks
3.2.30 Position signal conversion (CONVPHAA)
3−118
l
EDSVS9332K−EXT EN 4.0
3.2.30 Position signal conversion (CONVPHAA)
Purpose
Simultaneous transfer of two position signals by means of a CAN object.
CONVPHAA1
C O N V P H A A 1
C O N V P H A A 1 - A O U T 1
C 1 6 2 1 / 1
C O N V P H A A 1 - P H I N
C 1 6 2 0 / 1
1 6 B i t
H i g h W o r d
1 6 B i t
L o w W o r d
C O N V P H A A 1 - A O U T 2

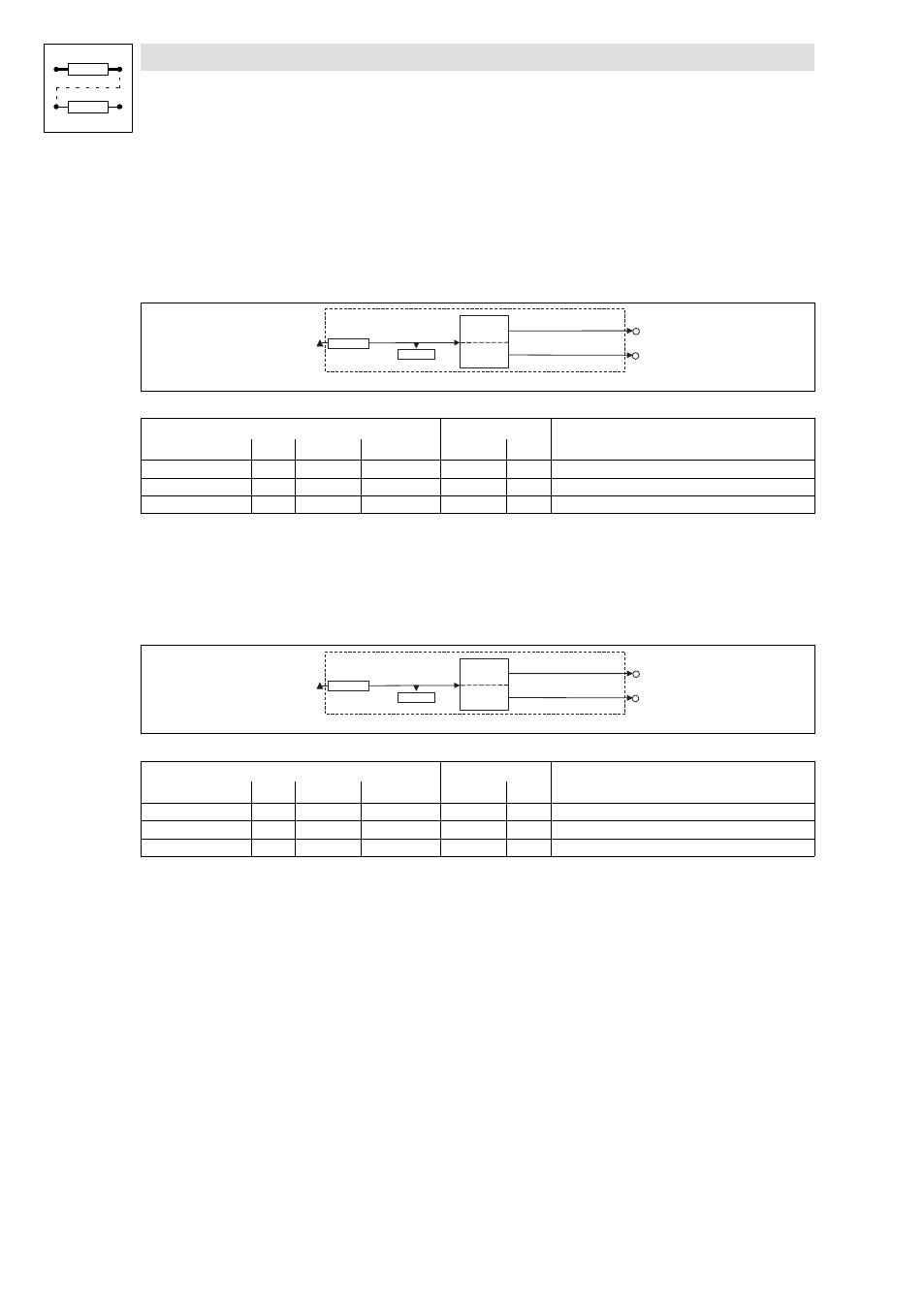

Fig. 3−90 Angle conversion (CONVPHAA1)
Signal Source Note
Name Type DIS DIS format CFG List
CONVPHAA1−PHIN ph C1621/1 [inc] C1620/1 −
CONVPHAA1−AOUT1 a − − − − Low word (16 bits)
CONVPHAA1−AOUT2 a − − − − High word (16 bits)
Function
The input signal is divided into a low word and a high word with 16 bits each.
The corresponding output signal can be processed as a position signal.
CONVPHAA2
C O N V P H A A 2
C O N V P H A A 2 - A O U T 1
C 1 6 2 1 / 2
C O N V P H A A 2 - P H I N
C 1 6 2 0 / 2
1 6 B i t
H i g h W o r d
1 6 B i t
L o w W o r d
C O N V P H A A 2 - A O U T 2
Fig. 3−91 Function block CONVPHAA2
Signal Source Note
Name Type DIS DIS format CFG List
CONVPHAA2−PHIN ph C1621/2 [inc] C1620/2 −
CONVPHAA2−AOUT1 a − − − − Low word
CONVPHAA2−AOUT2 a − − − − High word
Function
The input signal is divided into a low word and a high word with 16 bits each.
The corresponding output signal can be processed as a position signal.
