3.2.45 Delay elements (DIGDEL)
Purpose
This function is used to delay digital signals. This function can be used for the control of functions
or the generation of status information.
t 0
DIGDEL1-IN
C0724
DIGDEL1-OUT
DIGDEL1
C0721
C0720
C0723

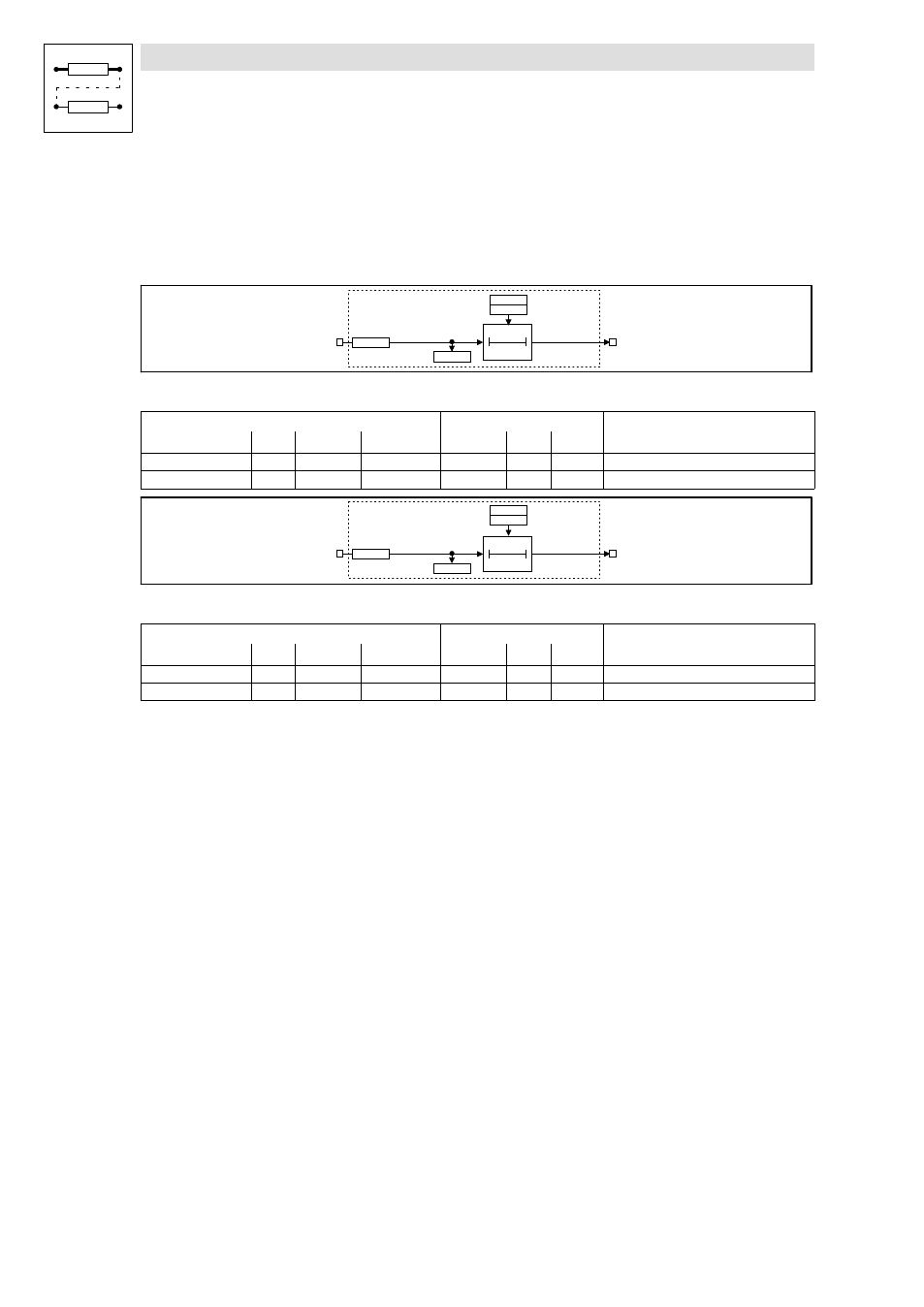

Fig. 3−118 Delay element (DIGDEL1)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
DIGDEL1−IN d C0724 bin C0723 2 1000 −
DIGDEL1−OUT d − − − − − −
t 0
DIGDEL2-IN
C0729
DIGDEL2-OUT
DIGDEL2
C0726
C0725
C0728
Fig. 3−119 Delay element (DIGDEL2)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
DIGDEL2−IN d C0729 bin C0728 2 1000 −
DIGDEL−OUT d − − − − − −
Function
You can select the following functions under C0720 (DIGDEL1) and C0725 (DIGDEL2):
l On−delay
l Off−delay
l General delay
