Function library
Function blocks
3.2.94 Storage block (STORE2)
3−297
l
EDSVS9332K−EXT EN 4.0
3.2.94 Storage block (STORE2)
Purpose
Stores a setpoint angle signal which is generated from a speed signal. The storage process is
activated via the TP input X5/E4.
C 1 2 2 3 / 1
S T O R E 2 - R E S E T
C 1 2 2 0 / 1
C 1 2 2 3 / 2
S T O R E 2 - E N T P
C 1 2 2 0 / 2 > 1 _ R
D 1
1
0 T P i n p u t X 5 / E 4
0
R e g 1
R
C
R e g 2
R
C
S T O R E 2 - P H 1
S T O R E 2 - P H 2
S T O R E 2 - A C T
S T O R E 2 - T P - I N H
S T O R E 2
M C T R L - P H I - A C T
fb_store2

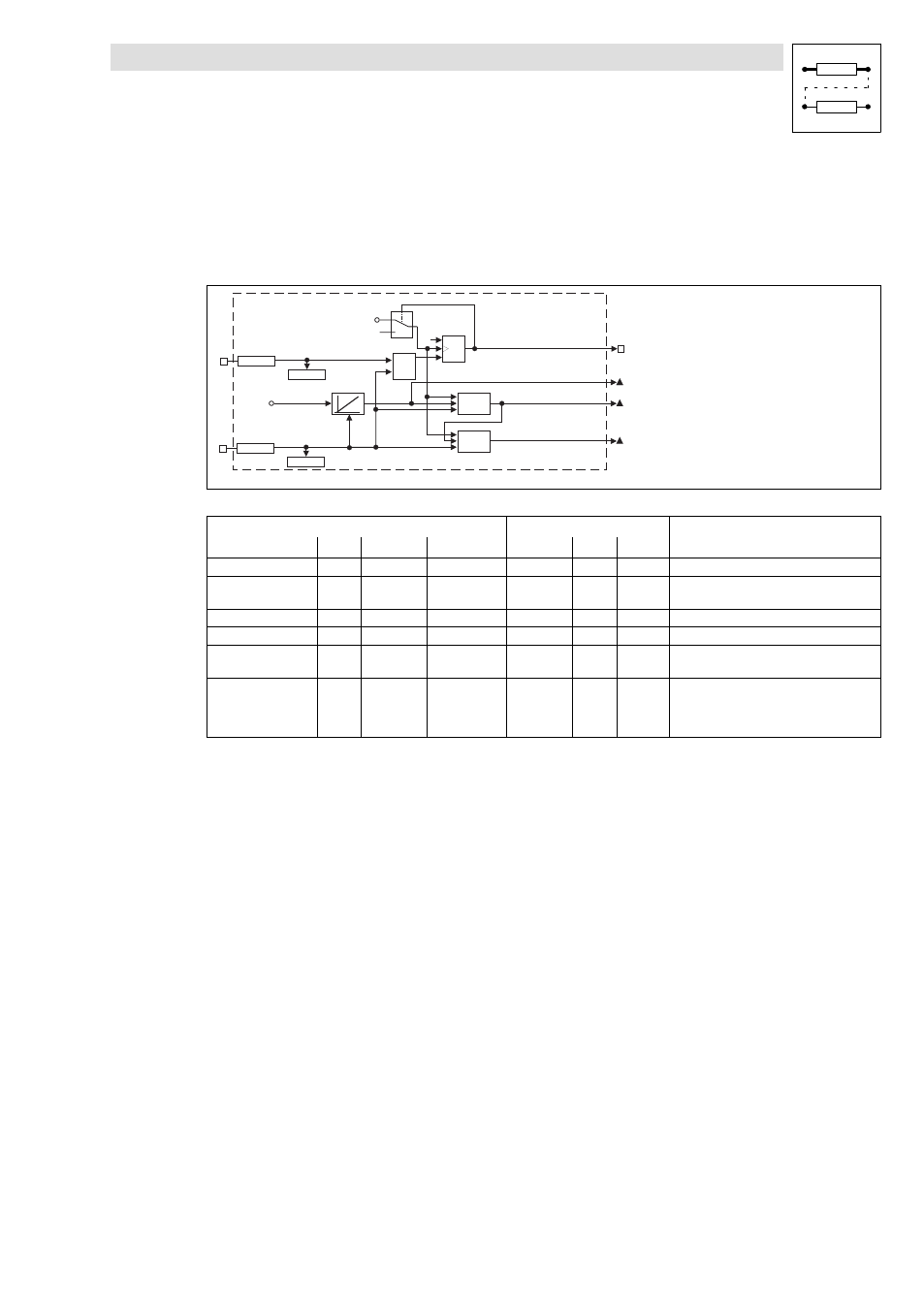

Fig. 3−243 Storage block (STORE2)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
STORE2−RESET d C1223/1 bin C1220/1 2 1000 HIGH = resets all functions
STORE2−ENTP d C1223/2 bin C1220/2 2 1000 HIGH = enables the triggering process via
the TP input E4
STORE2−ACT ph − − − − − Outputs the currently integrated value
STORE2−PH1 ph − − − − − Outputs the last value saved by X5/E5
STORE2−PH2 ph − − − − − Outputs the next to last value saved by
X5/E5
STORE2−TP−INH d − − − − − HIGH = triggering via TP input E4 has been
effected. For further triggering, a positive
edge has to occur at the input
STORE1−ENTP.
Saving the angle signal
A speed signal at MCTRL−PHI−ACT is integrated to a angle signal. In addition to the saving, the
following procedure shows the possibilities for the signal output.
l The current angle signal is output at STORE2−ACT.
1. A LOW−HIGH edge at the TP input E4 saves the last angle signal and outputs it at
STORE2−PH1.
2. STORE2−ENTP = LOW−HIGH edge enables the TP input E4 for the next triggering process.
3. A new LOW−HIGH edge at the TP input E4 saves the last angle signal.
– STORE2−PH1 outputs this last angle signal.
– STORE2−PH2 outputs the next to last angle signal.
l STORE2−RESET = HIGH resets the memory and the integrators and enables the TP input E4
for the triggering process.
