Function library
Function blocks
3.2.86 Ramp function generator for angle signals (RFGPH2 and RFGPH3)
3−278
l
EDSVS9332K−EXT EN 4.0
End switch off
The function blocks provide two modes. They are set via C1075 for RFGPH2 and C1076 for RFGPH3.
l Without limit stop
– In this operating mode the outputs always follow the setpoint at RFGPHx−SET.

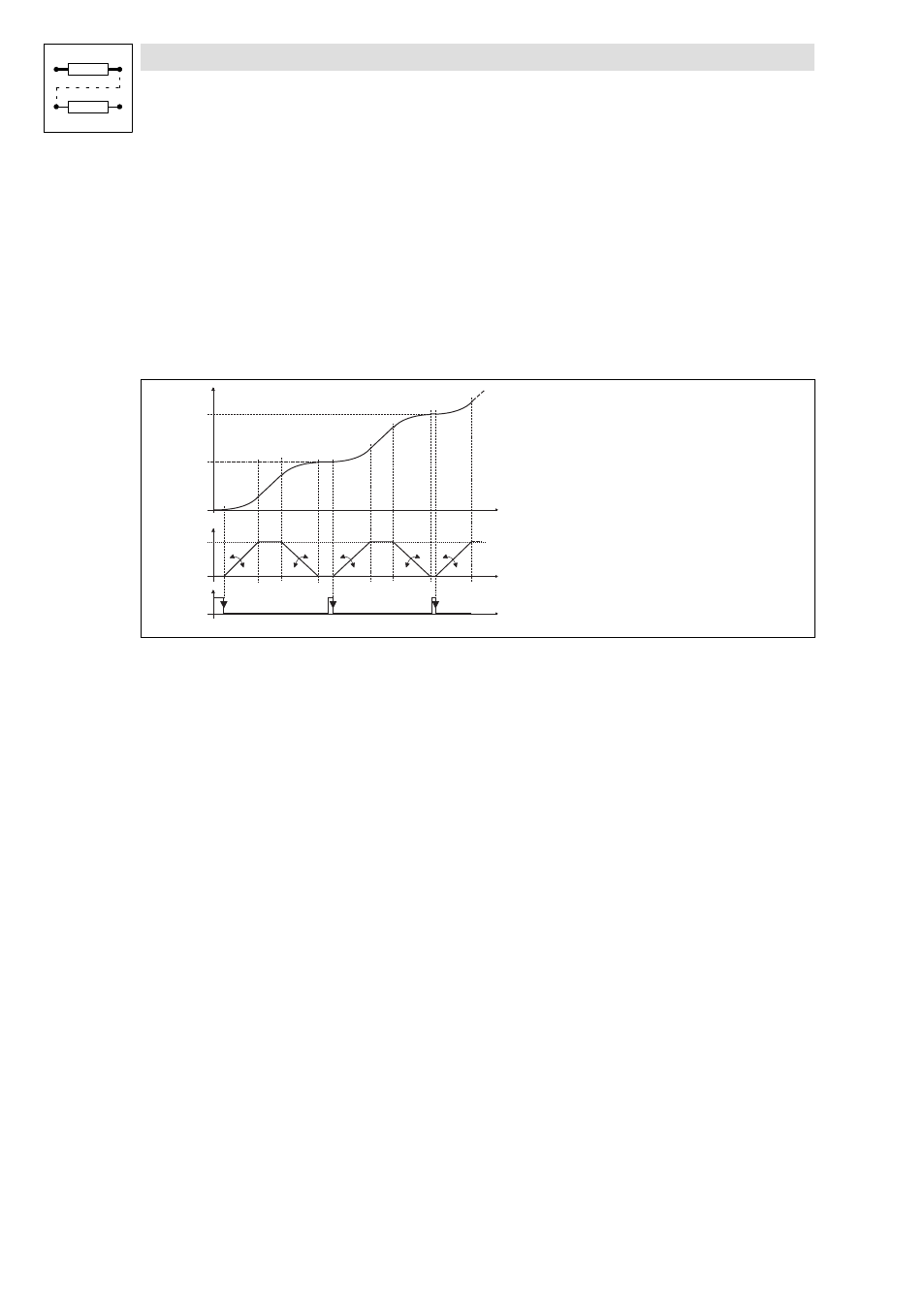

l With limit stop
– In this operating mode the outputs follow the setpoint at RRFGPHx−SET for one
positioning. If the setpoint position at RFGPH2−SET is changed, the outputs only follow the
setpoint if a HIGH−LOW edge has occurred at the input RFGPH2−STOP. This edge is the
start signal for the next positioning.
t
R F G P H 2 - N O U T
0
1 0 0 0 0
2 0 0 0 0
R F G P H 2 - P H O U T
t
0
0
C 1 0 7 8 / 1
C 1 0 7 9 / 3 C 1 0 7 9 / 3 C 1 0 7 9 / 2 C 1 0 7 9 / 2 C 1 0 7 9 / 2
R F G P H 2 - S T O P
9300kur013
