Doors.NET Reference Manual
- 391 -

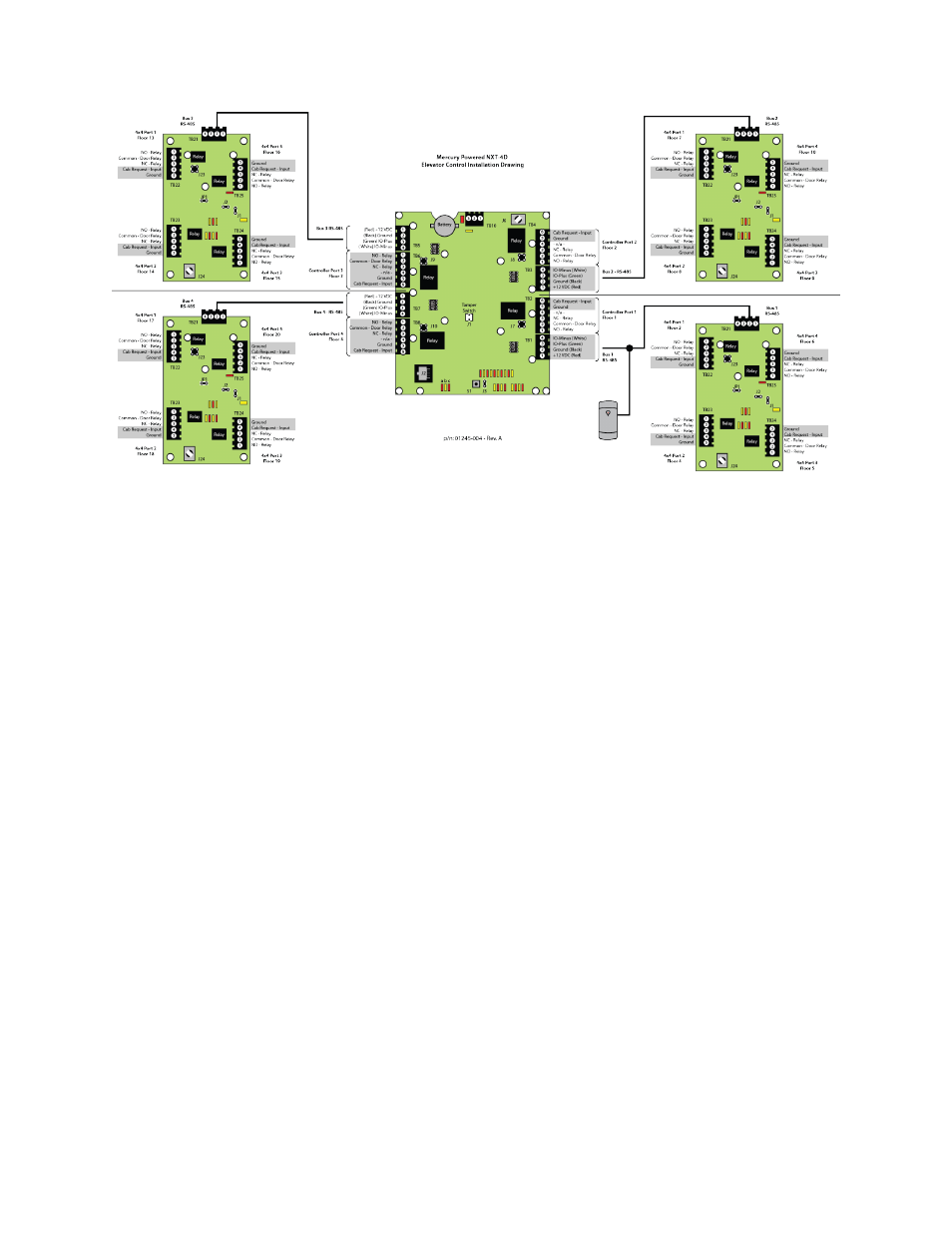

2-Door Controller an GIOX Unit
For a 2-door controller handling up to 34 floors:
Floor
Device
Wiring Location
Terminal
Block
Default Output Desig-
nator
1
2D-Con-
troller
Port 1
TB1
Output 0.1
2
2D-Con-
troller
Port 2
TB3
Output 0.2
3
GIOX
Output Module 1 - Slot
1
TB71
Output 1.1.1
4
GIOX
Output Module 1 - Slot
2
TB71
Output 1.1.2
5
GIOX
Output Module 1 - Slot
3
TB72
Output 1.1.3
6
GIOX
Output Module 1 - Slot
4
TB72
Output 1.1.4
7
GIOX
Output Module 1 - Slot
5
TB73
Output 1.1.5
8
GIOX
Output Module 1 - Slot
6
TB73
Output 1.1.6
9
GIOX
Output Module 1 - Slot
TB74
Output 1.1.7
