Page 232: Sb-593 satellite expansion board
Doors.NET Reference Manual
- 232 -
SB593 Satellite Expansion Board
The SB-593 Satellite Expansion Board plugs directly onto the
to provide an
additional 8 general purpose inputs and 4 general purpose outputs.
With a simple jumper setting, two of the inputs and two of the outputs are configured to
economically manage a second door.
Specifications
Operating Temperature/Humidity Range
o
0°F to 140°F (-18°C to 60°C)
o
0% to 90% Relative Humidity, non-condensing
Controller with Satellite Board Power Requirements
o
12 VDC @ 1 Amp
Current Draw
o
150 mA max for an SB-593 Satellite Board

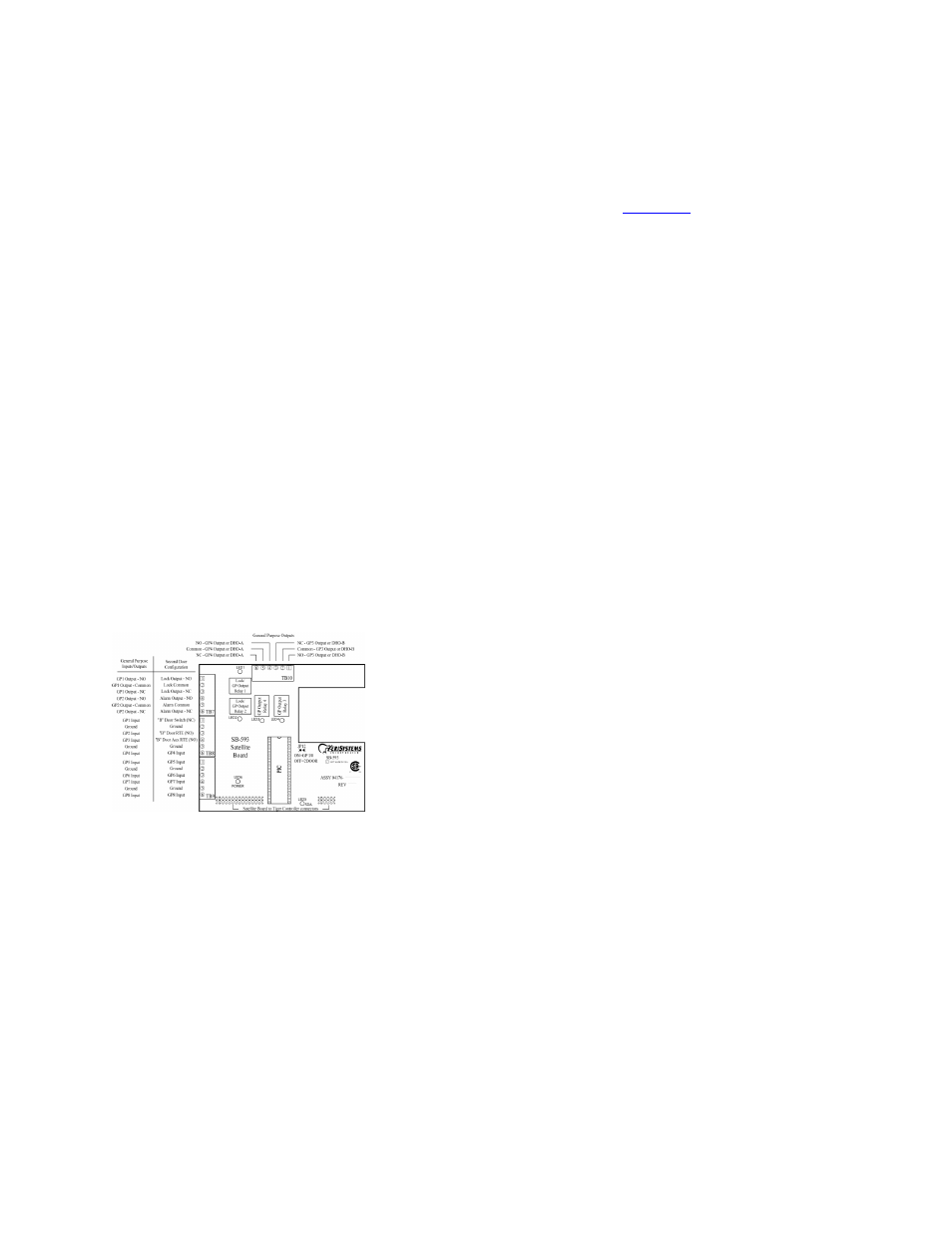

Wiring Diagram
