Doors.NET Reference Manual
- 346 -

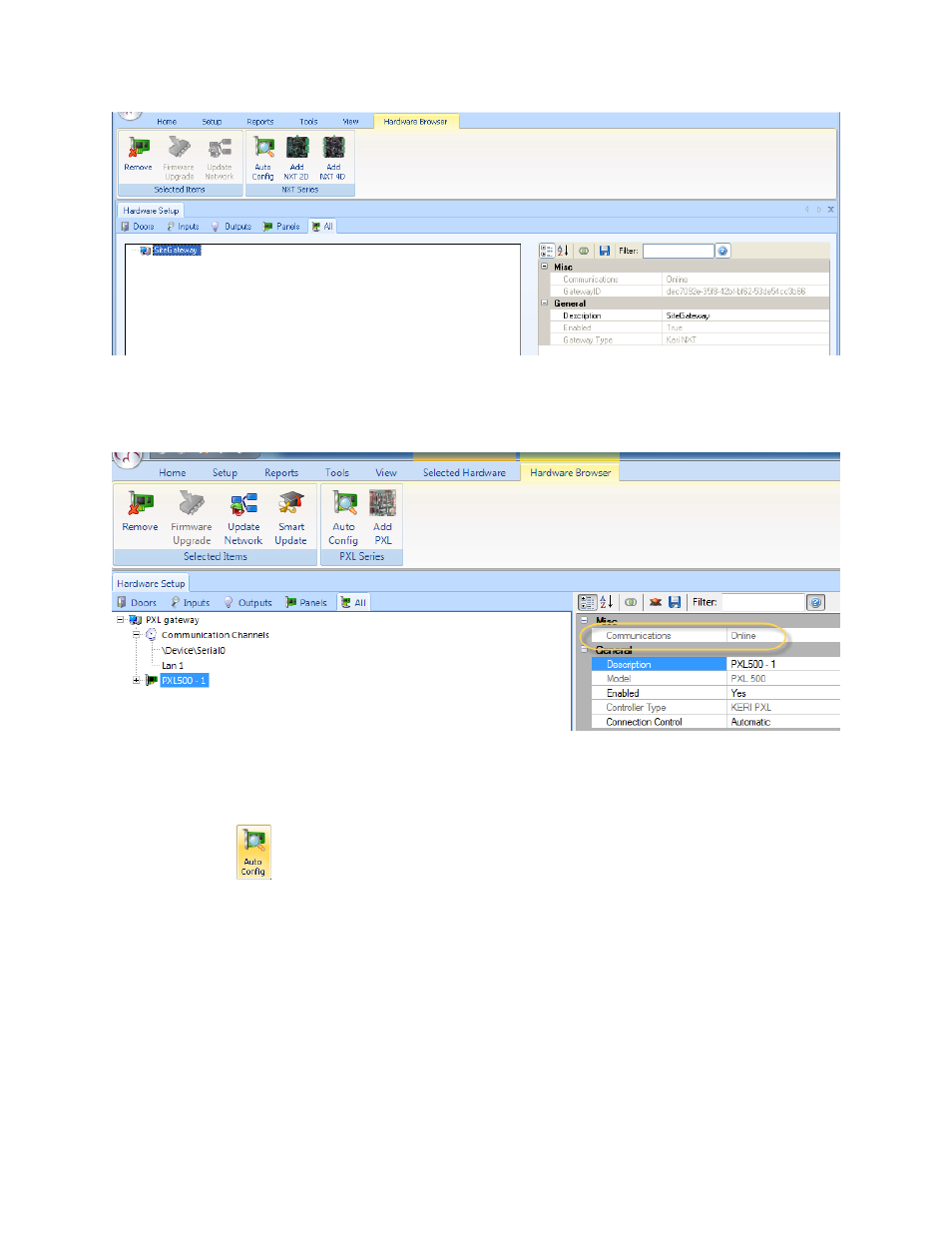

If PXL controllers are being used, the master controller needs to be online and then
selected.
NOTE: Before continuing, ensure all controllers to be configured are powered up, on the
network, and ready to be discovered/configured.
4. Click the
icon. The AutoConfiguration Results tab opens and the network is
polled for available controllers. The progress/status of
this polling is displayed in the Status Messages portion of the Tab.
5. After a short delay, a list of all available controllers found on the network is dis-
played.
6. Review this list and compare it to the controllers you believe you have installed. If
a controller is not displayed on this list, it means it did not successfully connect to
the network.
NXT controllers
