Input Power
l
NXT-1R 10 to 14 VDC @ 110 mA typical
l
NXT-3R 10 to 14 VDC @ 110 mA typical
l
NXT-5R 10 to 14 VDC @ 110 mA typical
Operating Temperature
-40° F to 149° F (-40° C to 65° C)
LED Indicator - Tri-Color Standard: Red, Green, Amber, Off
Audio Tone - Standard
Interface - 4 conductor (2 twisted pairs), shielded
Color - Black
Warranty - Lifetime Warranty against defects in materials and workmanship

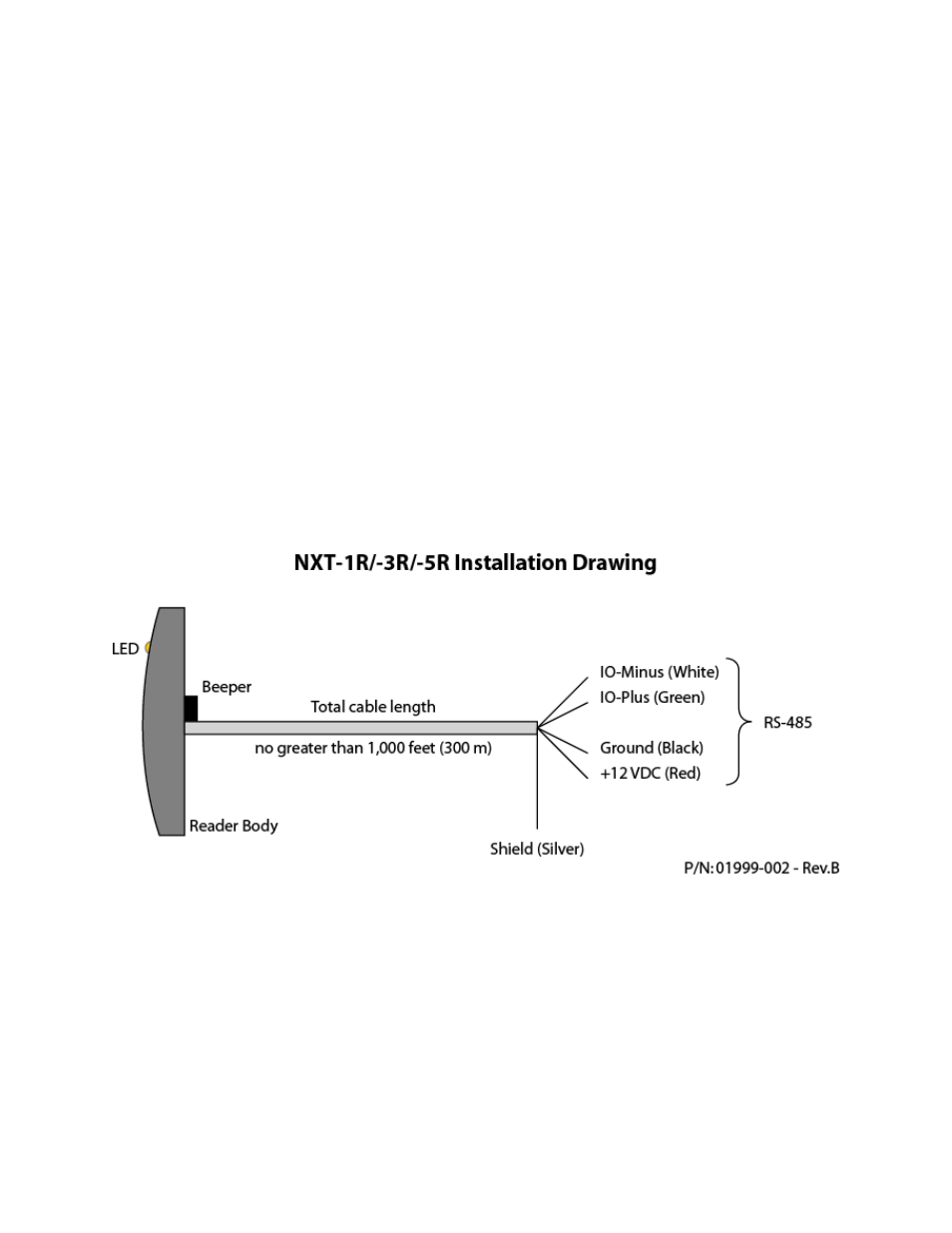

Wiring Diagram
