Assembling Momentum Components
870 USE 101 10 V.2
99
Mounting the Assembled Adapters on the I/O Base, Continued
Procedure:
Mounting the
Assembled
Adapters on an
I/O Base
Follow the steps in the table below to mount the assembly on an I/O base.
Continued on next page
Step
Action
1
Be sure that the I/O base is not under power when you assemble the module.
2

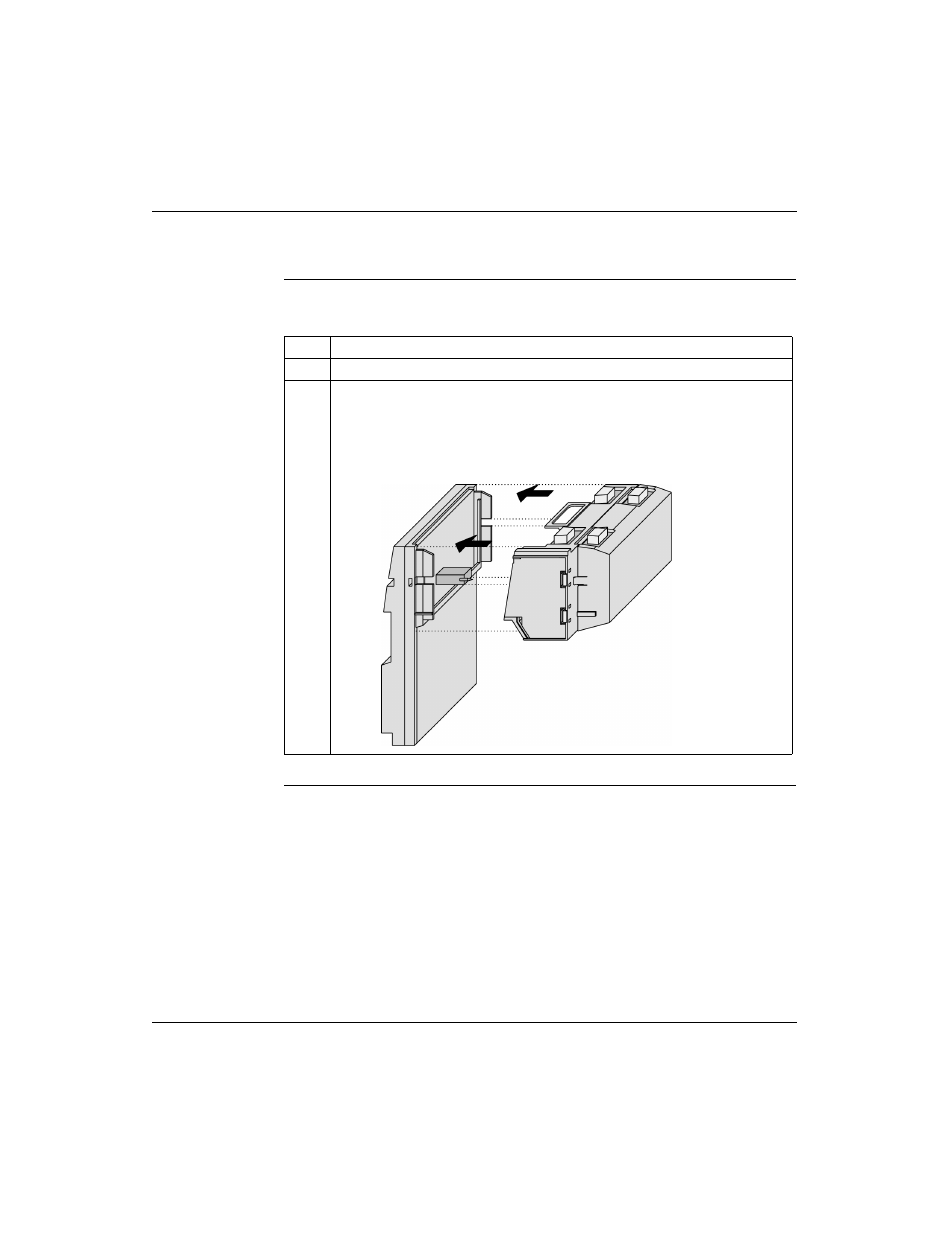

Align the four plastic snap extensions, on the front and sides of the Option Adapter,
with the slots on the I/O base.
The 12-pin connectors will automatically line up when the units are in this position.
The devices should be oriented so their communication ports are facing out on the
back side of the assembly.
