Configuring an M1 CPU with Concept
870 USE 101 10 V.2
319
Changing the Range of Discrete and Register References, Continued
Procedure
Follow the steps below to change the range of discrete and register references,
using the PLC Configuration screen:
Step
Action
1
From the Configure menu, select Memory Partitions OR double-click on any
field in the Ranges section of the dialog box.

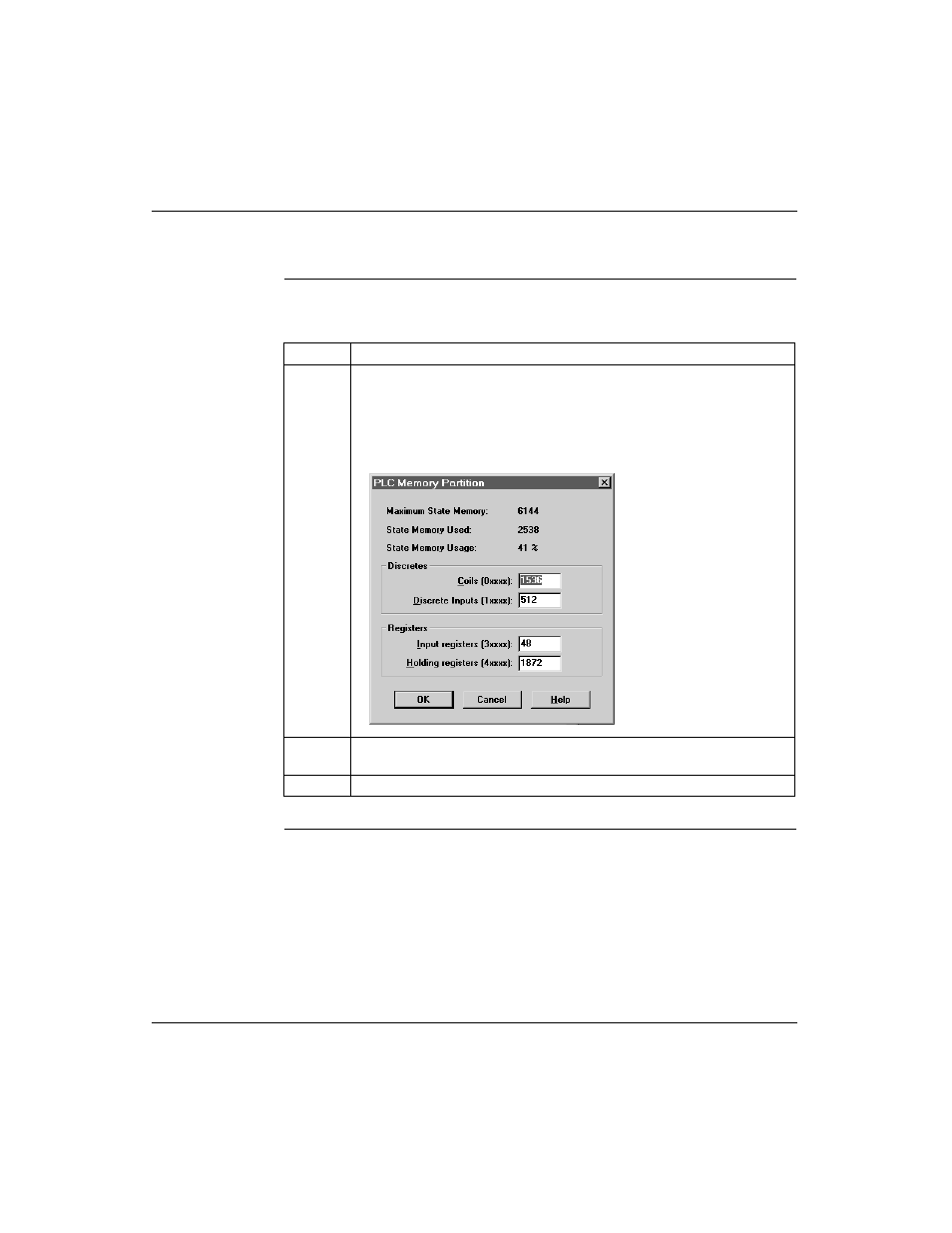

Result: The PLC Memory Partition dialog box appears, showing
the maximum memory size and the register allocation of the CPU.
2
Modify the range of your discrete and register references by changing the value
in the variable boxes, in keeping with the guidelines described above.
3
Click the
