Overview of Momentum M1 Processor Adapters
22 870 USE 101 10 V.2
Overview of Ports
Introduction Each Processor Adapter is equipped with at least one Modbus or Ethernet port.
Some models also have a second port. The ports allow the Processor Adapter to
communicate with:
l
Programming panels
l Network I/O points under its control
l Network supervisory computers

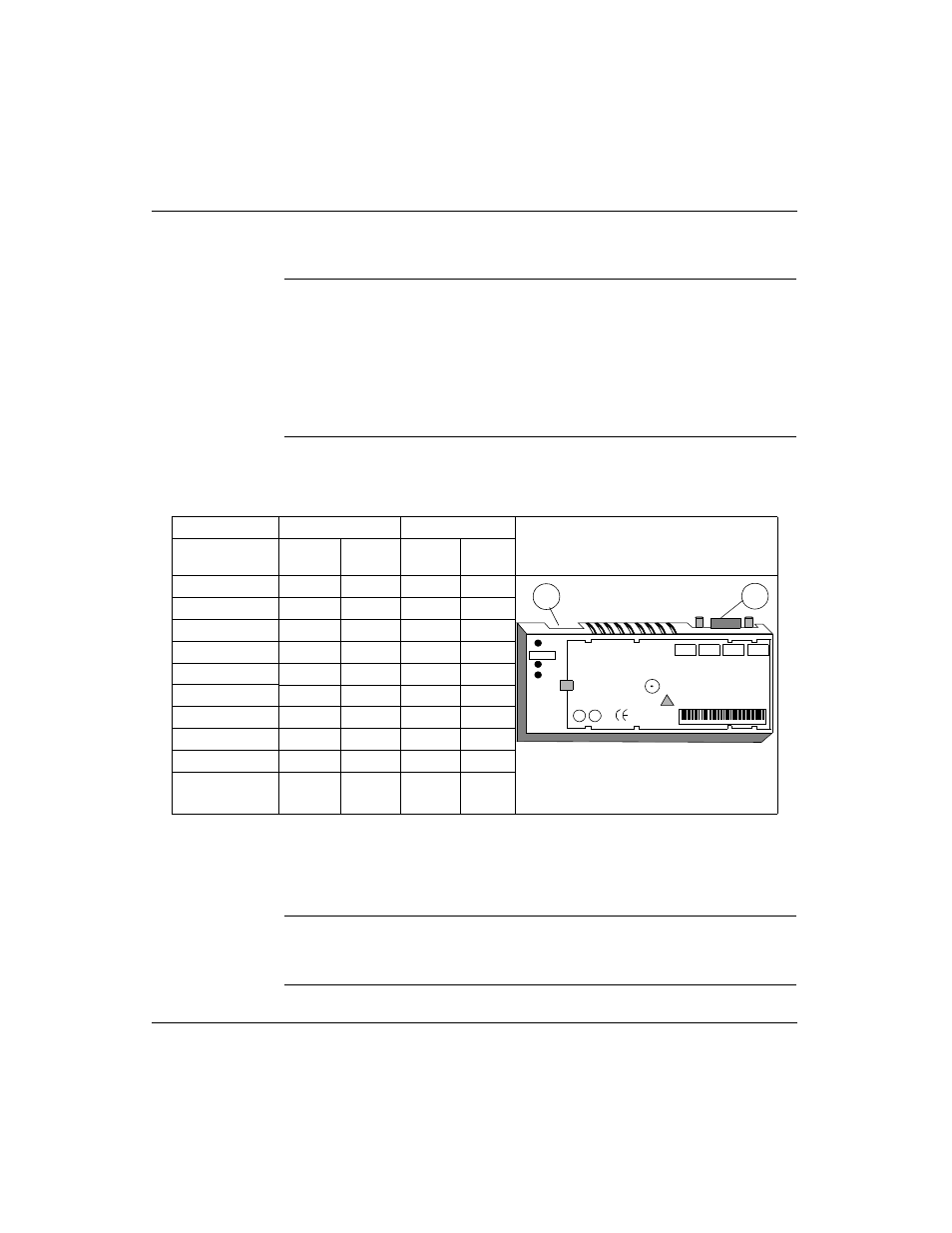

Ports Per
Processor
Adapter The following table indicates which ports are available with each Processor
Adapter:
Ethernet Port The Ethernet port is a standard, twisted pair, Ethernet 10BASE-T port which can
communicate with programming panels, other M1 Processor Adapters with
Ethernet ports, and with other Ethernet products. This port has an RJ45 connector,
with an industry standard pinout.
Modbus Port 1 Modbus Port 1 is a general-purpose asynchronous serial port with dedicated
RS232 slave functionality. This port has an RJ45 connector.
Continued on next page
Port 1 Port 2
Processor
Adapter Ethernet
Port Modbus
RS-232 Modbus
RS-485 I/O Bus
Port
171 CCS 700 00 x
171 CCS 700 10 x
171 CCS 760 00 x x
171 CCC 760 10 x x
171 CCS 780 00 x x
171 CCC 780 10 x x
171 CCC 960 20 x x
171 CCC 960 30 x x
171 CCC 980 20 x x
171 CCC 980 30 x x
1.
2 1
171 CCS 780 00
Schneider
Automation Inc.
2.
Port 1
Port 2
