Pinouts for Modbus Port 1
Overview
This section provides pinouts for the D-shell adapters for Modbus Port 1.
110 XCA 203 00
Pinout

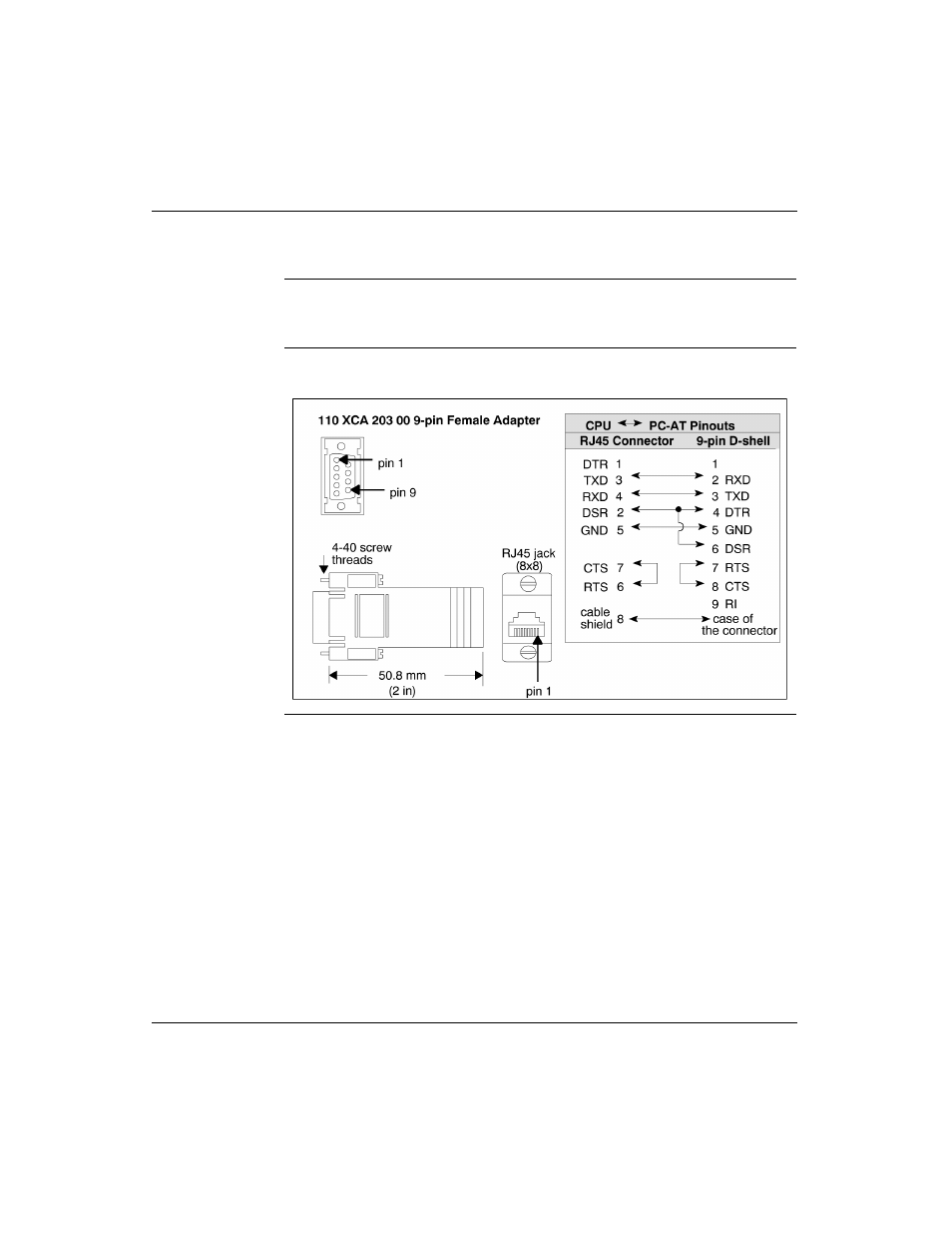

The pinout for this adapter is shown in the illustration below:
