Configuring an M1 CPU with Modsoft
870 USE 101 10 V.2 207
Selecting an M1 Processor Adapter
Introduction This section describes how to select an M1 Processor Adapter with Modsoft 2.6,
starting from the Configuration Overview editor.
Procedure Follow the steps below to select an M1 Processor Adapter.
Continued on next page
Note: For a full description of how to use Modsoft 2.6, refer to Modicon Modsoft
Programmer Software (V.2.6) User Guide (890 USE 115 00).
Step Action

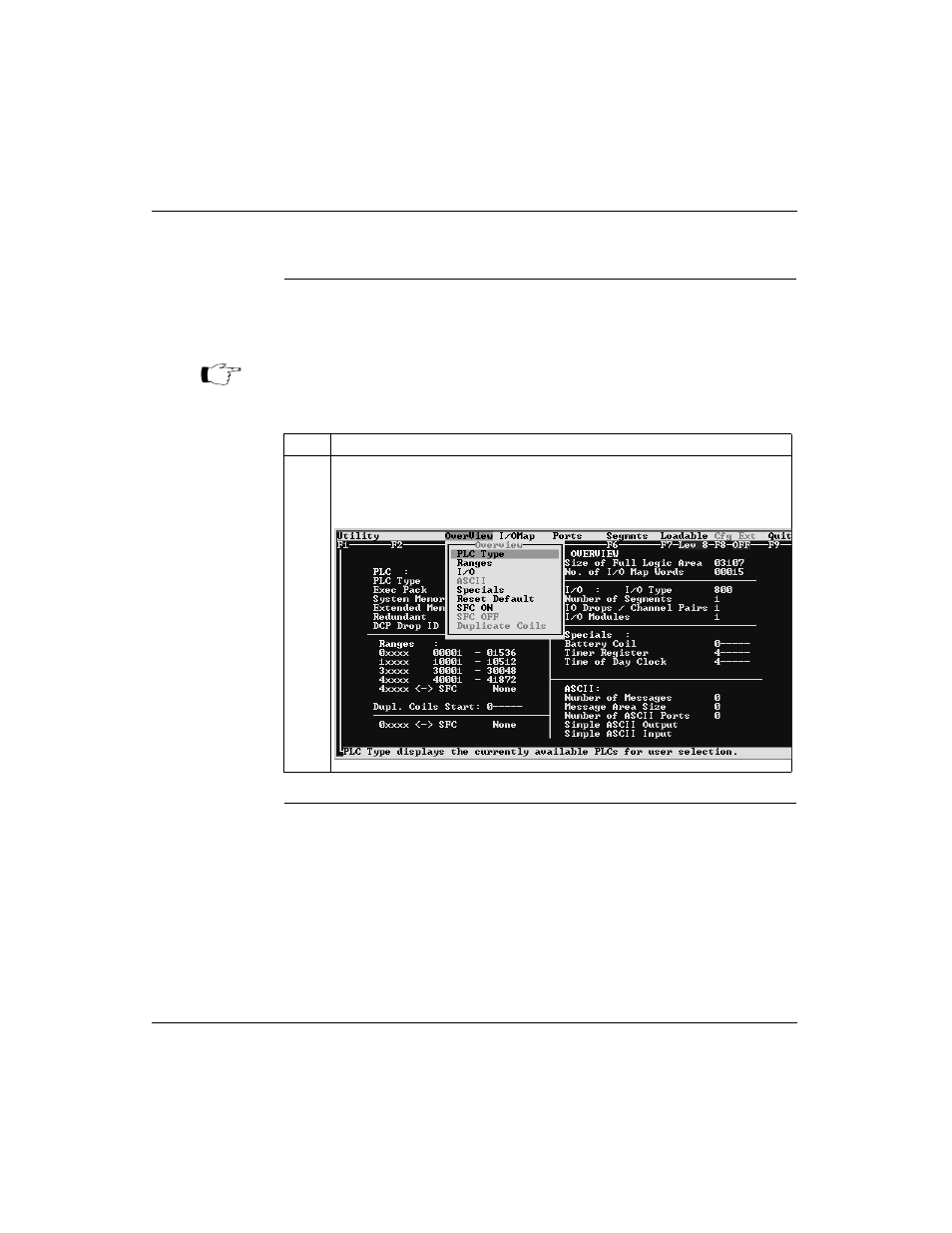

1 With a new Configuration Overview editor on the screen, move the cursor onto the
OverView selection on the top menu bar.
Result: A pull-down list of options appears.
