Using the Modbus Plus Ports
870 USE 101 10 V.2 189
Cluster Mode Cabling Schemes, Continued

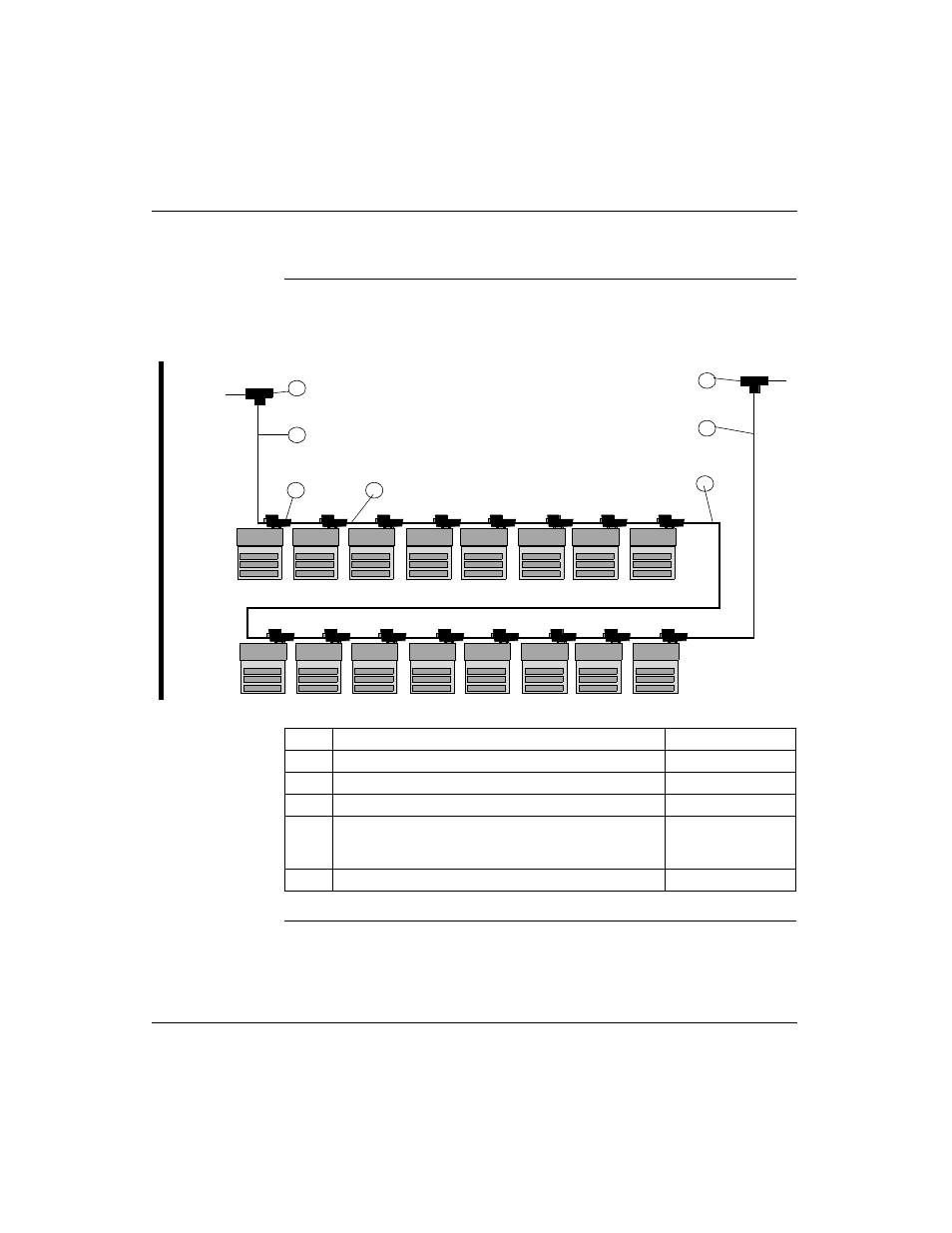

Cluster Scheme
#1 In this example, two clusters of Momentum I/O modules are connected in
sequence. The trunk cable continues from the clusters in both directions.
Continued on next page
1
2
3 4
5
2
1
Label Description Part Number
1 Modbus Plus Tap 990 NAD 230 00
2 Modbus Plus 10 ft. Drop Cable 170 MCI 021 20
3 Modbus Plus Connector “T” (DB9 base) 170 XTS 020 00
4 Modbus Plus / Modbus RS485 Short Interconnect Cable
OR
Modbus Plus / Modbus RS485 3 ft. Interconnect Cable 170 MCI 020 10
170 MCI 020 36
5 Modbus Plus / Modbus RS485 30 ft. Interconnect Cable 170 MCI 020 80
