Using Peer Cop with Modsoft
288 870 USE 101 10 V.2
Specifying References for Input and Output Data, Continued
Defining the
Specific Output,
Continued
Continued on next page
Step Action
3 In the LEN column of the SPECIFIC OUTPUT field, type the value 8, indicating that
the M1 CPU at address 2 will send eight 16-bit words to the supervisory PLC. Push
.

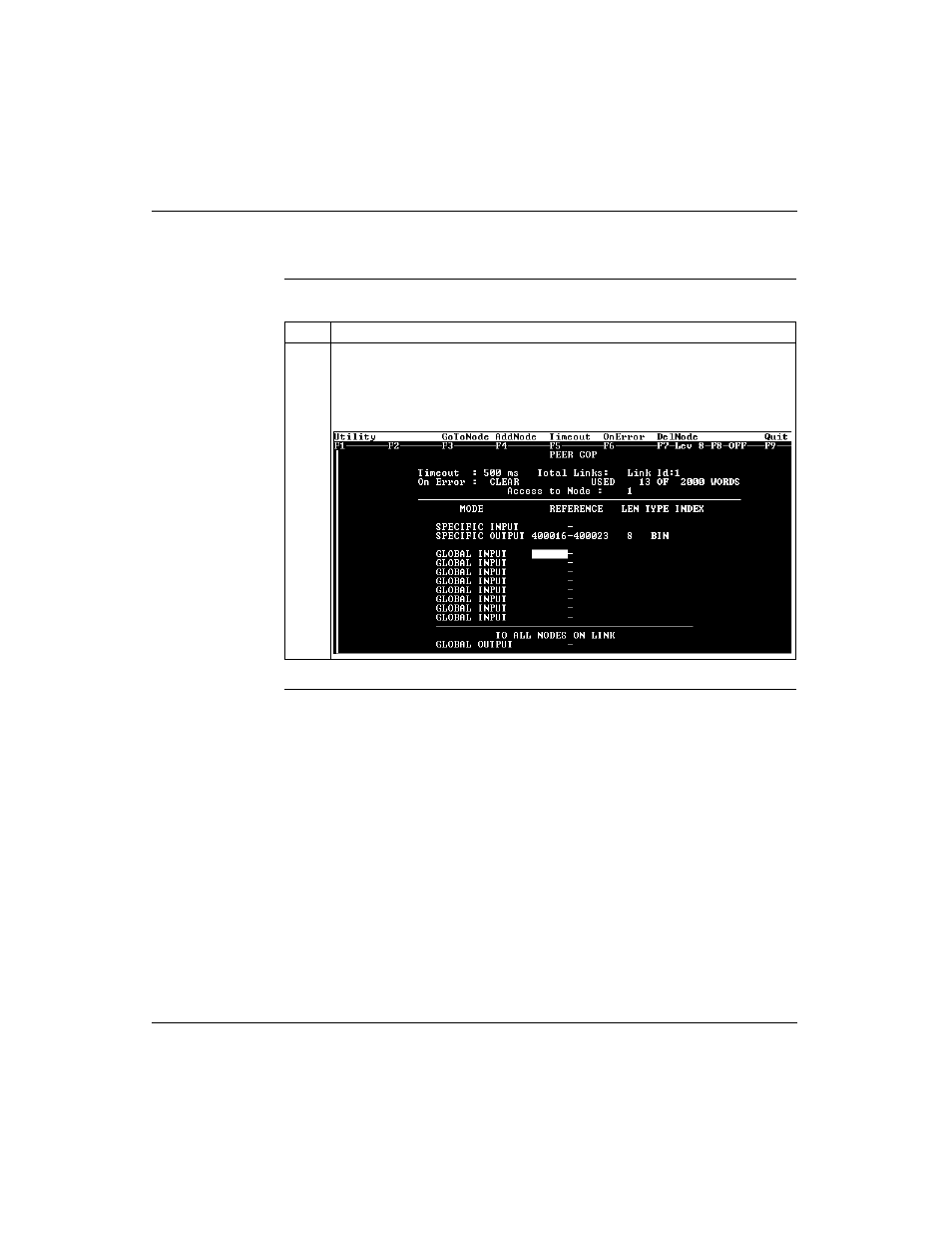

Result: The Peer Cop screen should like this:
