Schneider Electric Processor Adapter - Manual (Page 143)

Using the Ethernet Port
870 USE 101 10 V..2 143
Ethernet Port
Introduction The Ethernet port allows a Processor Adapter to connect to an Ethernet network
for:
l high-speed I/O servicing
l
high-speed data transfer
l programming
l worldwide connectivity via the Internet
l
interfaces with a wide array of standard Modbus over TCP/IP Ethernet-aware
devices
Connector Type The Ethernet connector is a female RJ45 style phone jack.

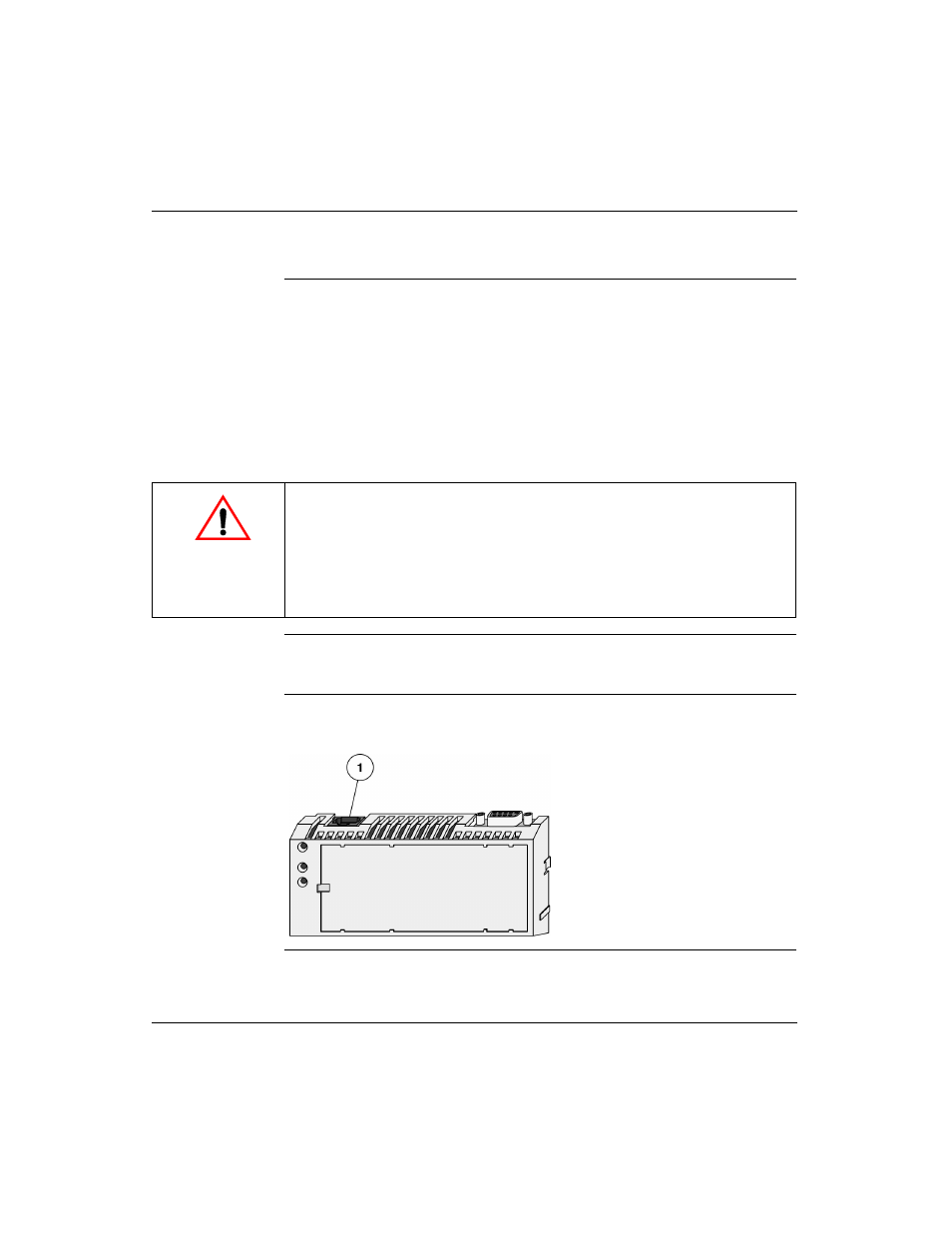

Illustration The following illustration shows the position of the Ethernet port on a Processor
Adapter:
CAUTION
Communication Errors May Result
After taking an Ethernet Processor out of service, it is recommended that you clear the
program and IP address to prevent future conflicts.
Before installing a replacement Ethernet Processor on your network, verify that it contains
the correct IP address and program for your application.
Failure to observe this precaution can result in injury or equipment damage.
