Using Peer Cop with Modsoft
298 870 USE 101 10 V.2
Defining References for the Supervisory Computer, Continued
Specifying
References for
Node 2 We know that this M1 CPU sends eight words of specific output to the supervisor
and receive five words of global data from the supervisor.
Follow the steps in the table below to define the registers that the supervisor will
transmit to and receive from the M1 CPU at Modbus Plus address 2.
Continued on next page
Step Action

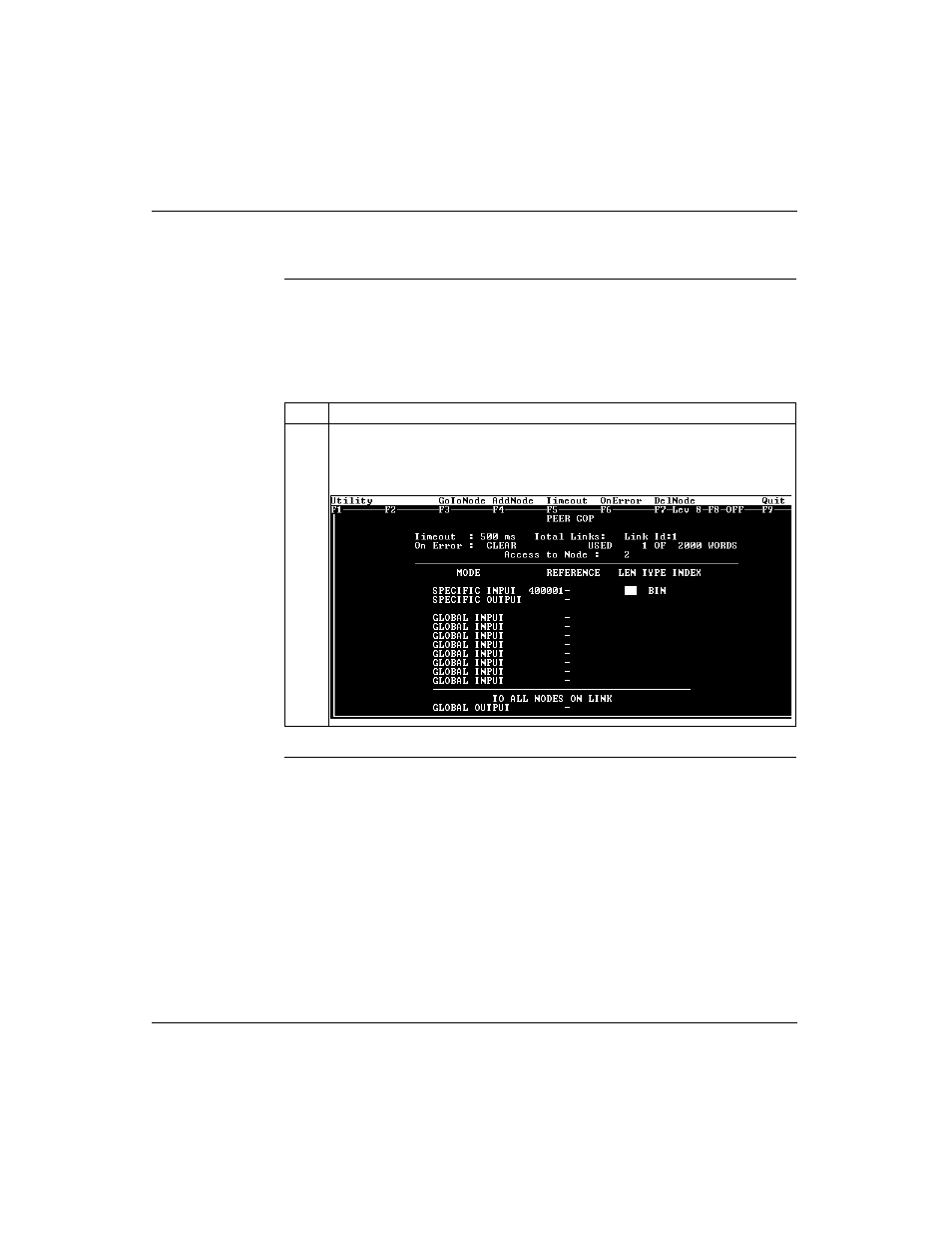

1 In the REFERENCE column of the SPECIFIC INPUT field, type the value 400001,
the first register which will receive the input. Push .
Result: The cursor moves to the LEN column.
