Using the Modbus Plus Ports
870 USE 101 10 V.2
197
Pinouts and Wiring Illustrations for Modbus Plus Networks, Continued
Terminating
Resistor Plugs

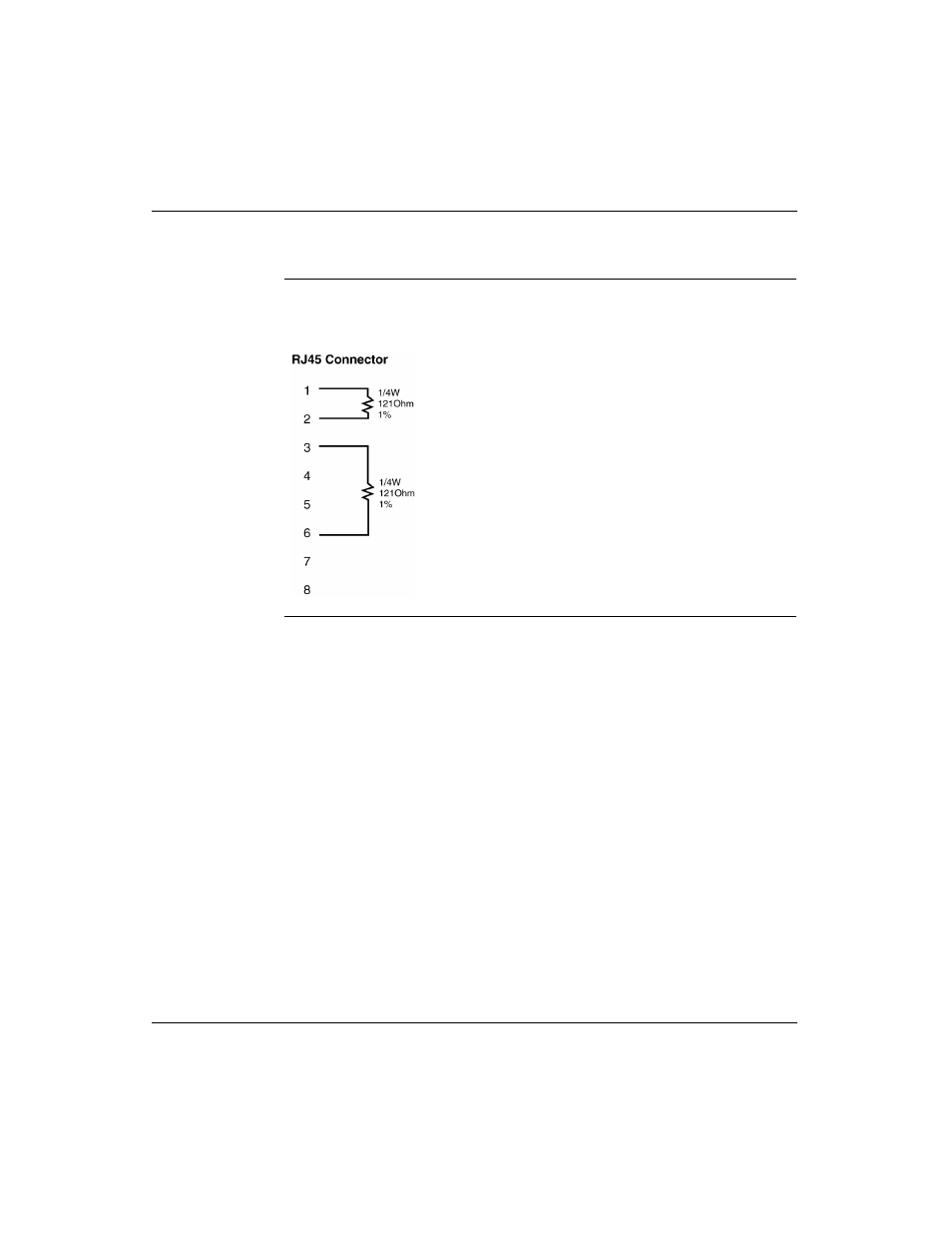

The following illustration shows the pinout for the Modbus Plus or Modbus RS485
Terminating RJ45 Resistor Plugs:
