Cable for Modbus RS485 Networks
Overview This section describes the cables which should be used in constructing an RS485
network for Momentum components.
Master
Communication
Cable This cable is required for master/slave communications in a four-wire cabling
scheme. This cable is 10” long and has a
blue boot.
Continued on next page

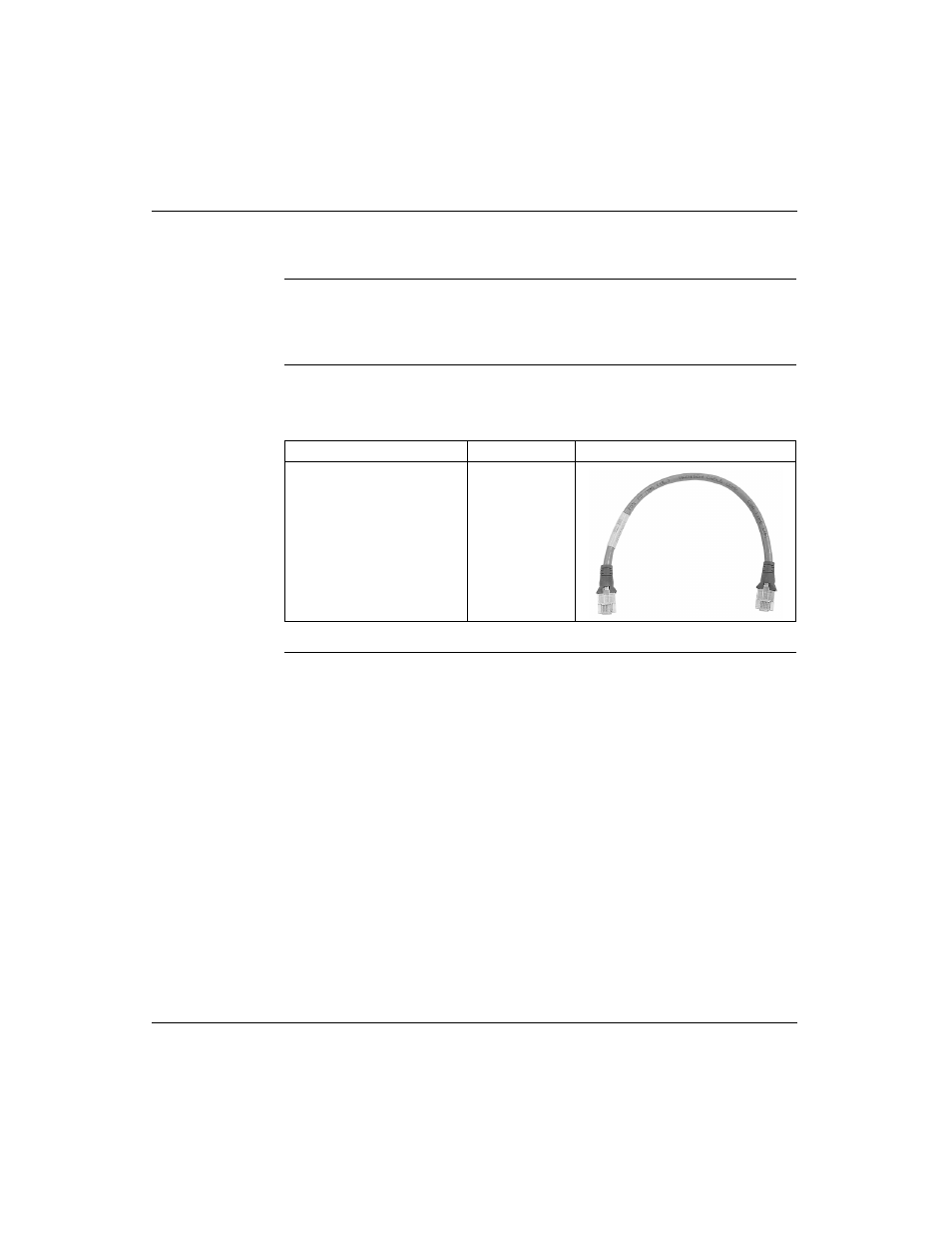

Description Part Number Illustration
Modbus RS485 (RJ45/RJ45)
Master Communication Cable 170 MCI 041 10
