Ladder Logic Elements and Instructions
870 USE 101 10 V.2
415

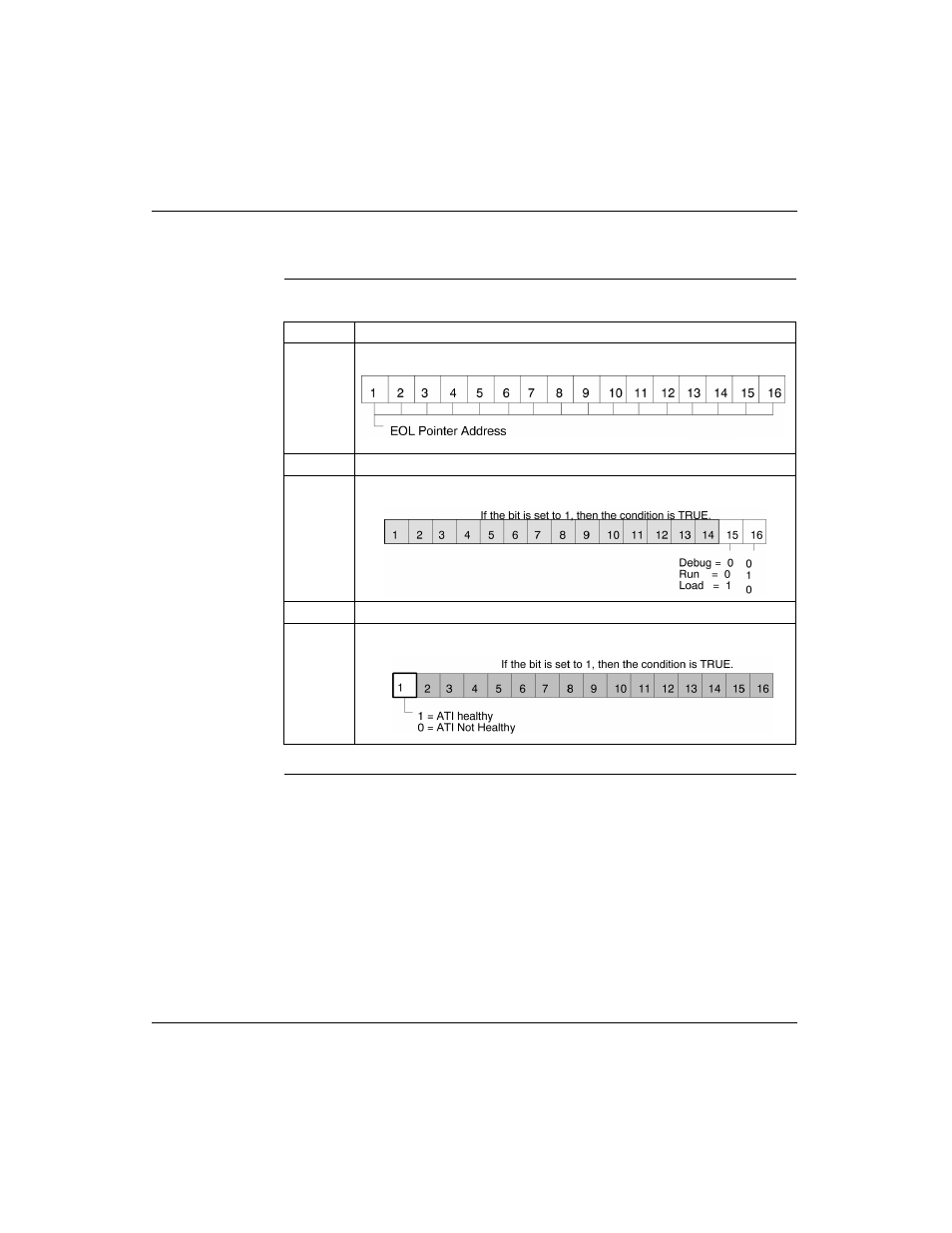

A Special STAT Instruction, Continued
Words 1...12,
Continued
Continued on next page
Word
Description
7
Displays the address of the end-of-logic (EOL) pointer:
8 and 9
Not used.
10
Uses its two least significant bits to display RUN/LOAD/DEBUG status:
11
Not used.
12
Indicates the health of the ATI module:
