Using the Modbus Ports
870 USE 101 10 V.2 139
Pinouts for Modbus RS485 Networks, Continued
Modbus RS485
Connector “T”

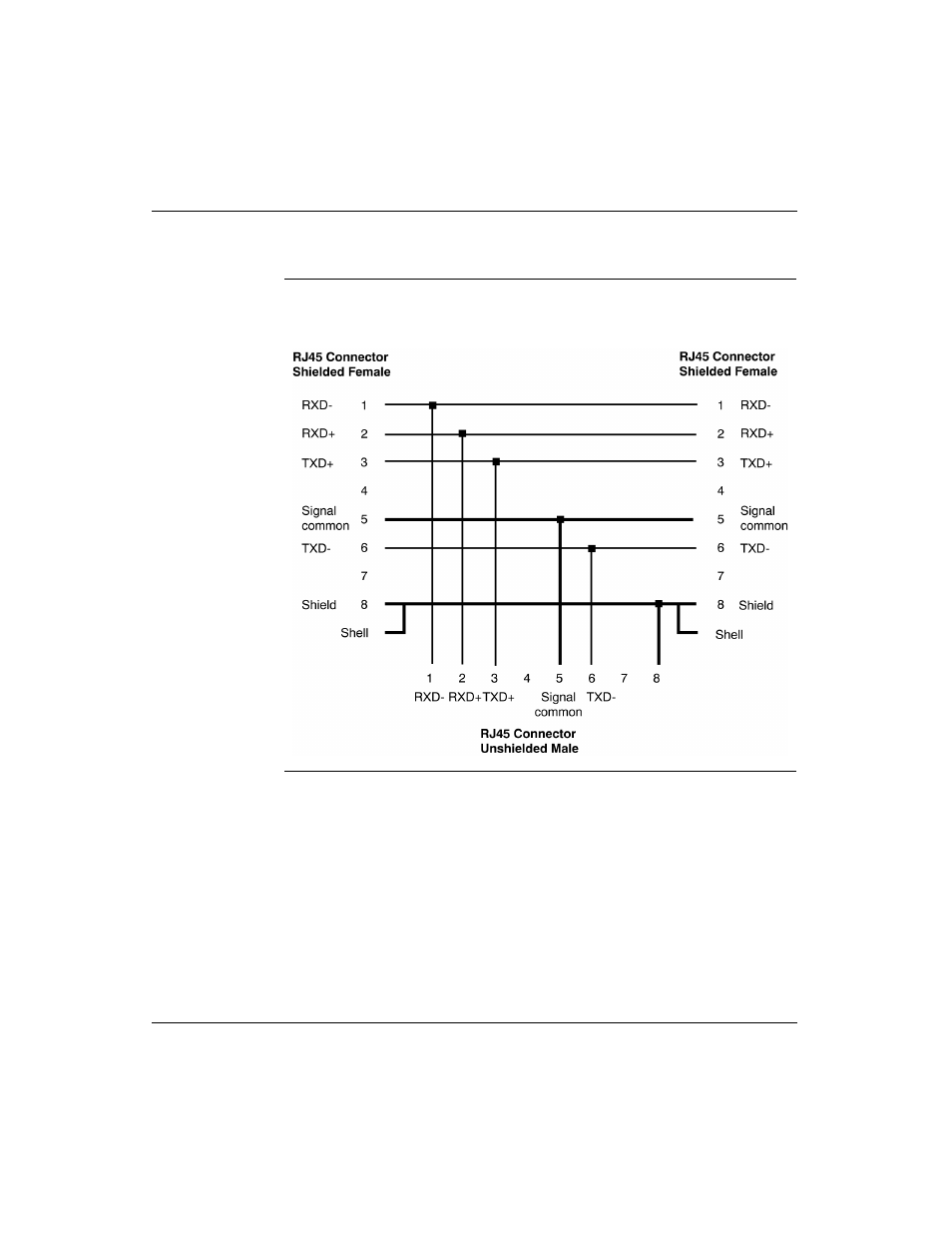

(RJ45 Base) The illustration below shows the pinout for the Modbus RS485 Connector “T” (RJ45
base):
Continued on next page
