Using Peer Cop with Modsoft
870 USE 101 10 V.2 261
The Default Peer Cop Screen
Overview This section describes the Peer Cop screen as it appears the first time you access
it.

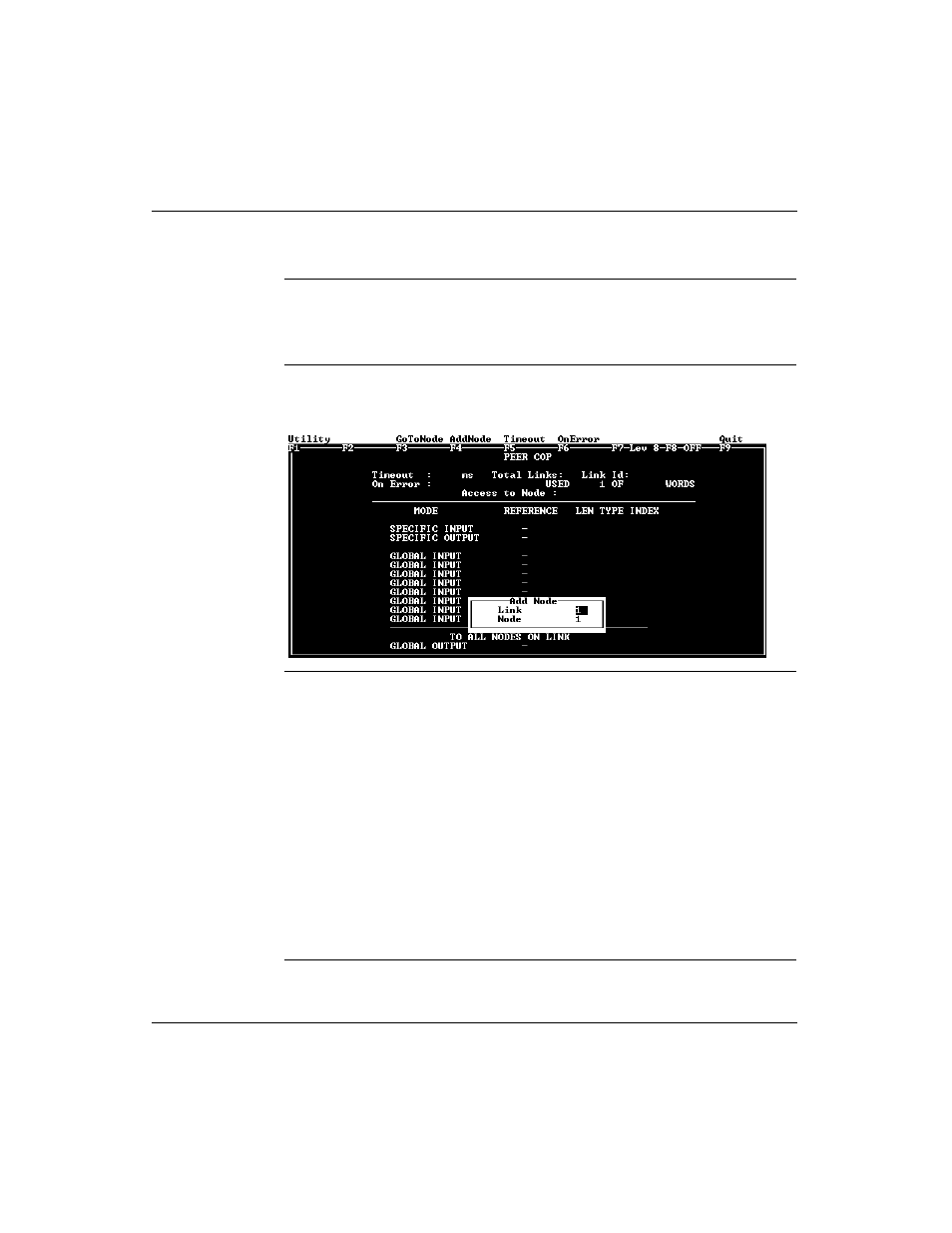

Illustration The first time you click on Peer Cop in the Cfg Ext menu, the following screen
appears:
Description The Peer Cop screen is divided into two regions by a horizontal rule.
At the top of the screen is a group of Peer Cop summary entries
l Timeout
l ON Error
l
Total Links
l Access to Node
The lower half of the screen displays the Peer Cop reference information, i.e., the
register or discrete references that the CPU uses to handle specific and global
inputs/outputs with other nodes on the network.
The Add Node popup menu appears near the bottom of the screen.
Continued on next page
