Using Peer Cop with Modsoft
296 870 USE 101 10 V.2
Defining the References for the Next Node, Continued
Defining Global
Inputs, Continued
Next Step Defining references for the supervisory computer.
Step Action
4 Type the value 4 i n the INDEX column of the GLOBAL INPUT field, indicating
that the M1 CPU at Modbus Plus address 3 will receive the seven words of global
data starting with word 4.
Result: The Peer Cop screen is now set to send 16 words of specific output to the
supervisor at Modbus Plus address 1 and to receive seven words of global data

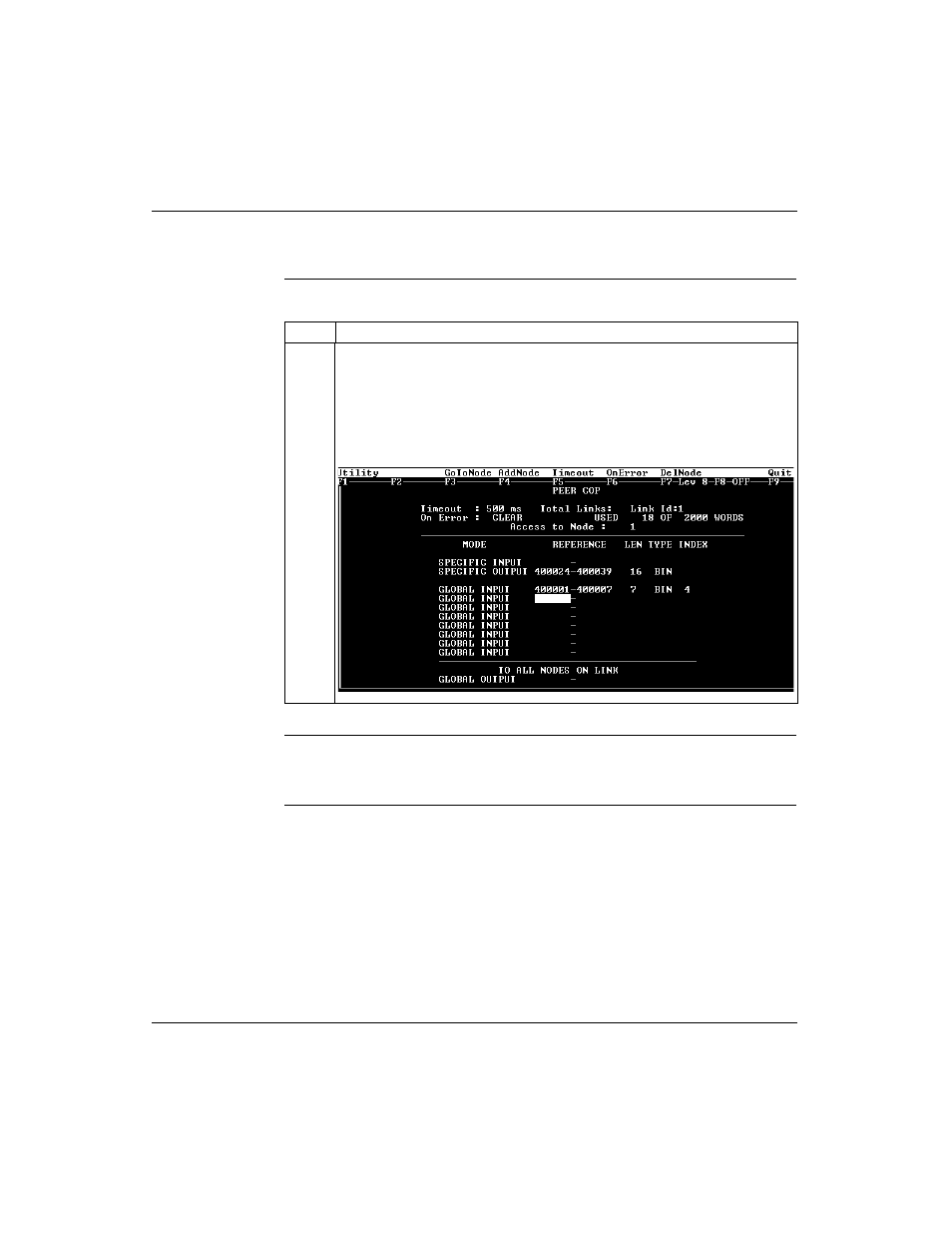

from the supervisor. The screen should like this:
