Overview of Momentum M1 Processor Adapters
32
870 USE 101 10 V.2
171 CCS 700 10
Overview
This section describes the 171 CCS 700 10 Processor Adapter, including key
features, an illustration and specifications.
Key Features
The key features of this Processor Adapter are:
l
Modbus Port 1
l
64K bytes of internal memory
l
32 MHz clock speed
Illustration

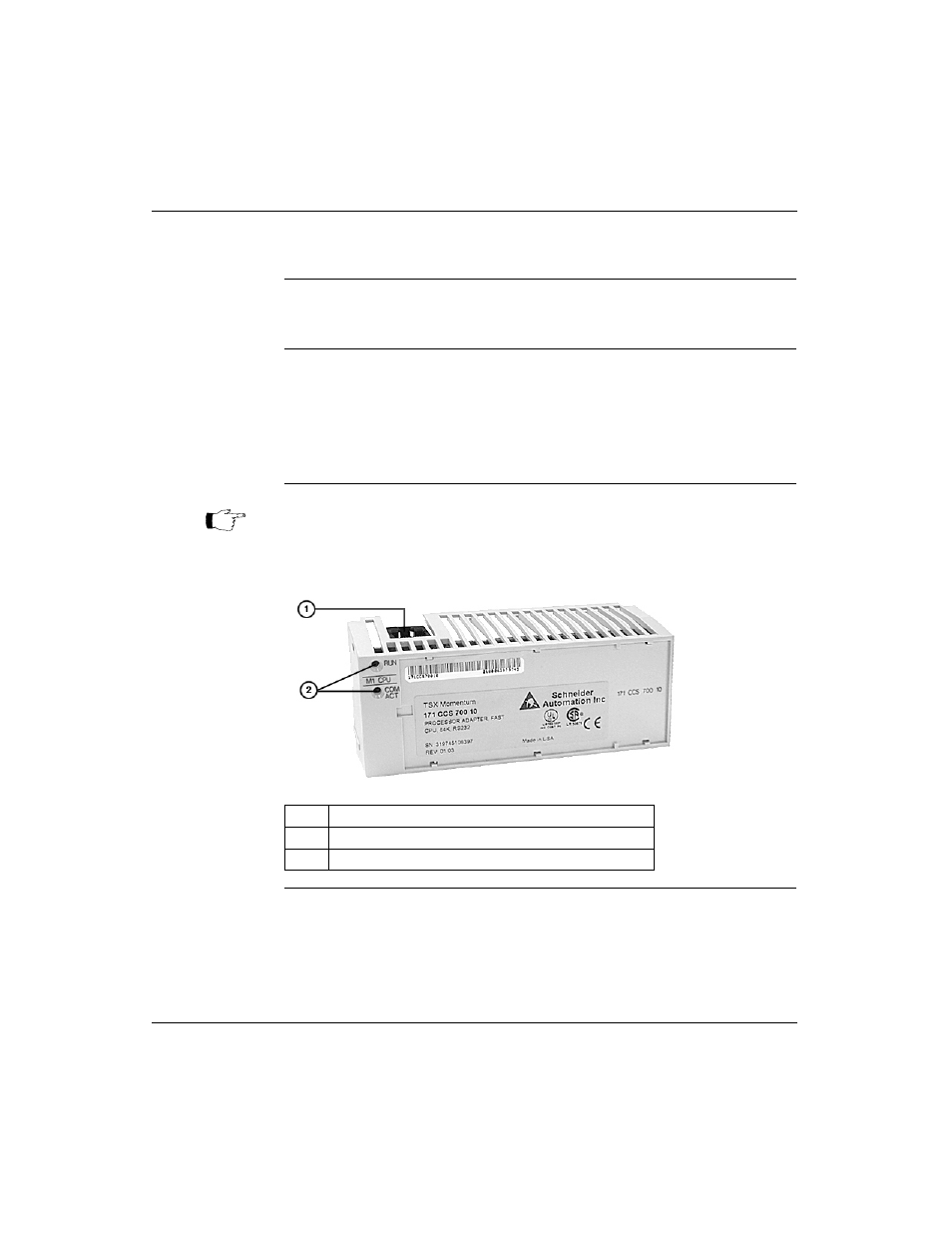

The connector and LED indicators are shown in the following illustration:
Continued on next page
Note: The Modbus port connector looks like a Ethernet port connector. Do not
attempt to use an Modbus adapter as an Ethernet unit. Do not attempt to
place an Ethernet connector in a Modbus connector.
Label Description
1
Modbus Port 1 connector
2
LED indicators
