Configuring an M1 CPU with Modsoft
226 870 USE 101 10 V.2
Setting up the Time-of-Day Clock
Overview Each Option Adapter has a time-of-day clock. To use this feature, you must reserve
a block of eight 4
x registers.
This section describes how to reserve those registers, using Modsoft 2.6.
Reserving
Registers for the
TOD Clock To reserve registers for the time-of-day clock, perform the steps in the following
table.
Continued on next page
Step Action
1 From the Overview menu, select Specials.
Result: The cursor moves into the Battery Coil field on the Configuration
Overview screen.

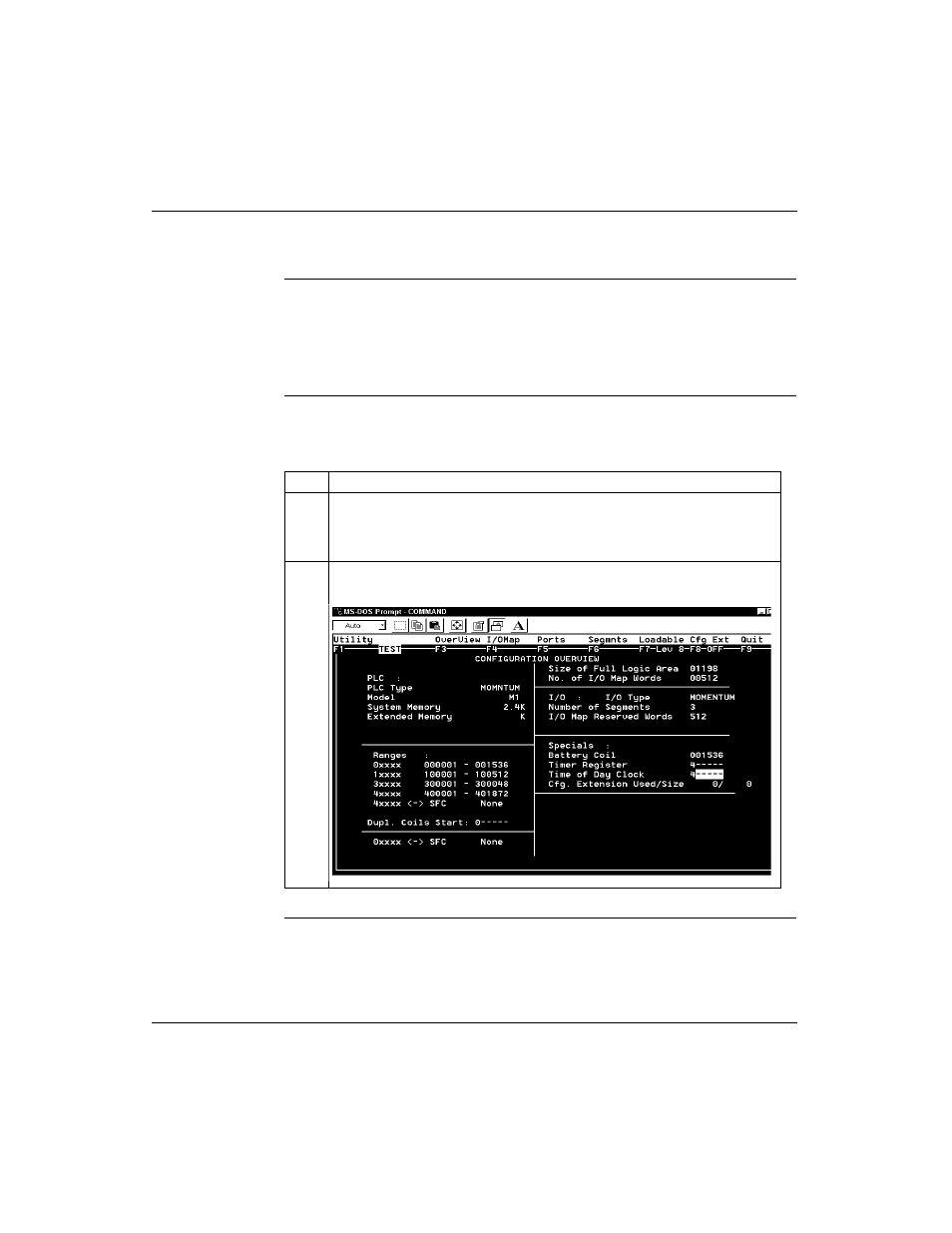

2 Push the down arrow key twice to move the cursor into the Time of Day Clock
field.
