Ladder Logic Elements and Instructions
406 870 USE 101 10 V.2
Standard Ladder Logic Elements
Introduction This section provides a glossary of standard ladder logic symbols and instructions.
Ladder Logic
Symbols The table below provides the meaning of standard ladder logic symbols.
Continued on next page

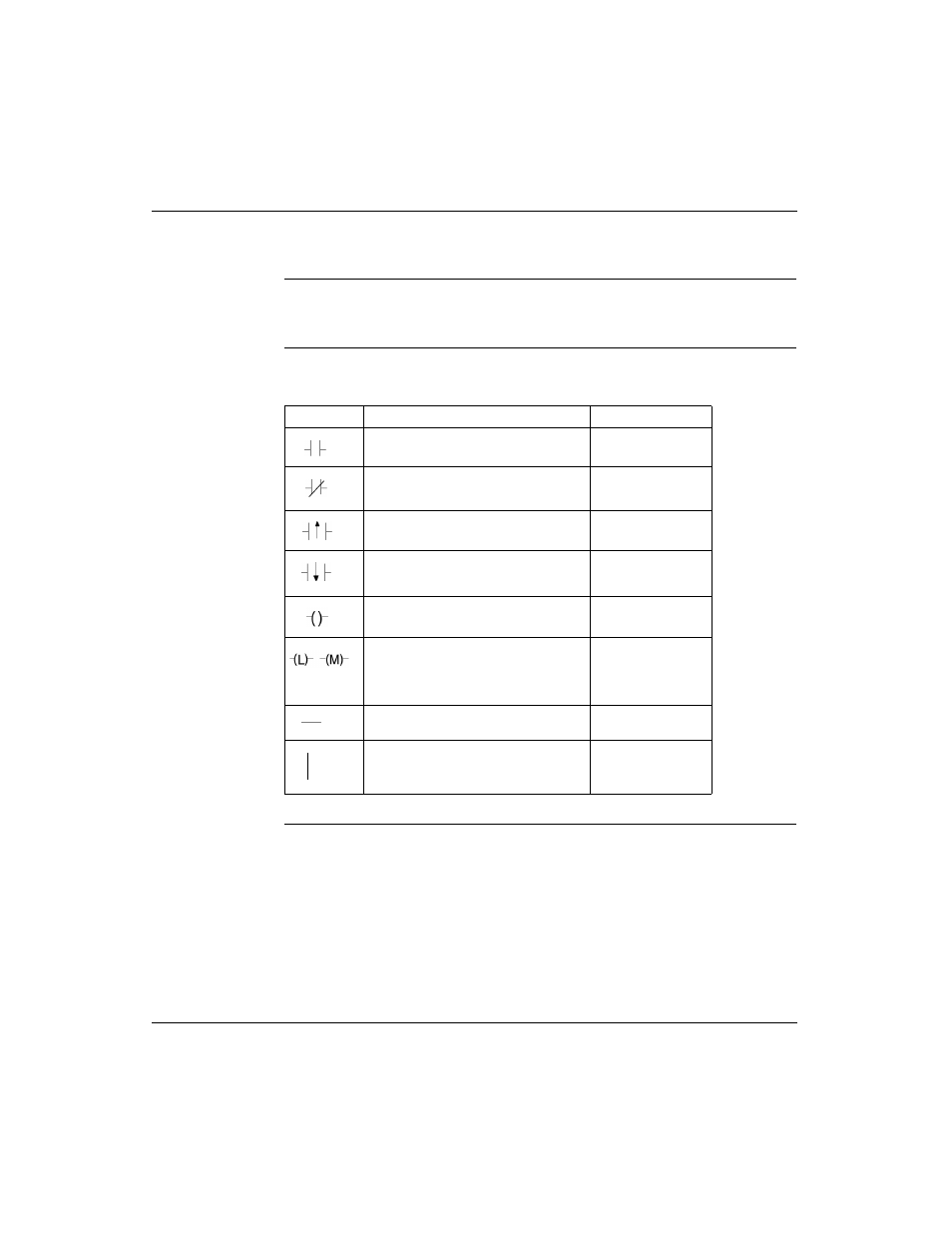

Symbol Meaning Nodes Consumed
Normally open (N.O.) contact 1
Normally closed (N.C.) contact 1
Positive transitional (P.T.) contact 1
Negative transitional (N.T.) contact 1
Normal coil 1
Memory-retentive or latched coil; the
two symbols mean the same thing, and
the user may select the preferred
version for online display. 1
Horizontal short 1
Vertical short 0
