Using Peer Cop with Modsoft
870 USE 101 10 V.2
299
Defining References for the Supervisory Computer, Continued
Specifying
References for
Node 2,
Continued
Continued on next page
Step
Action
2

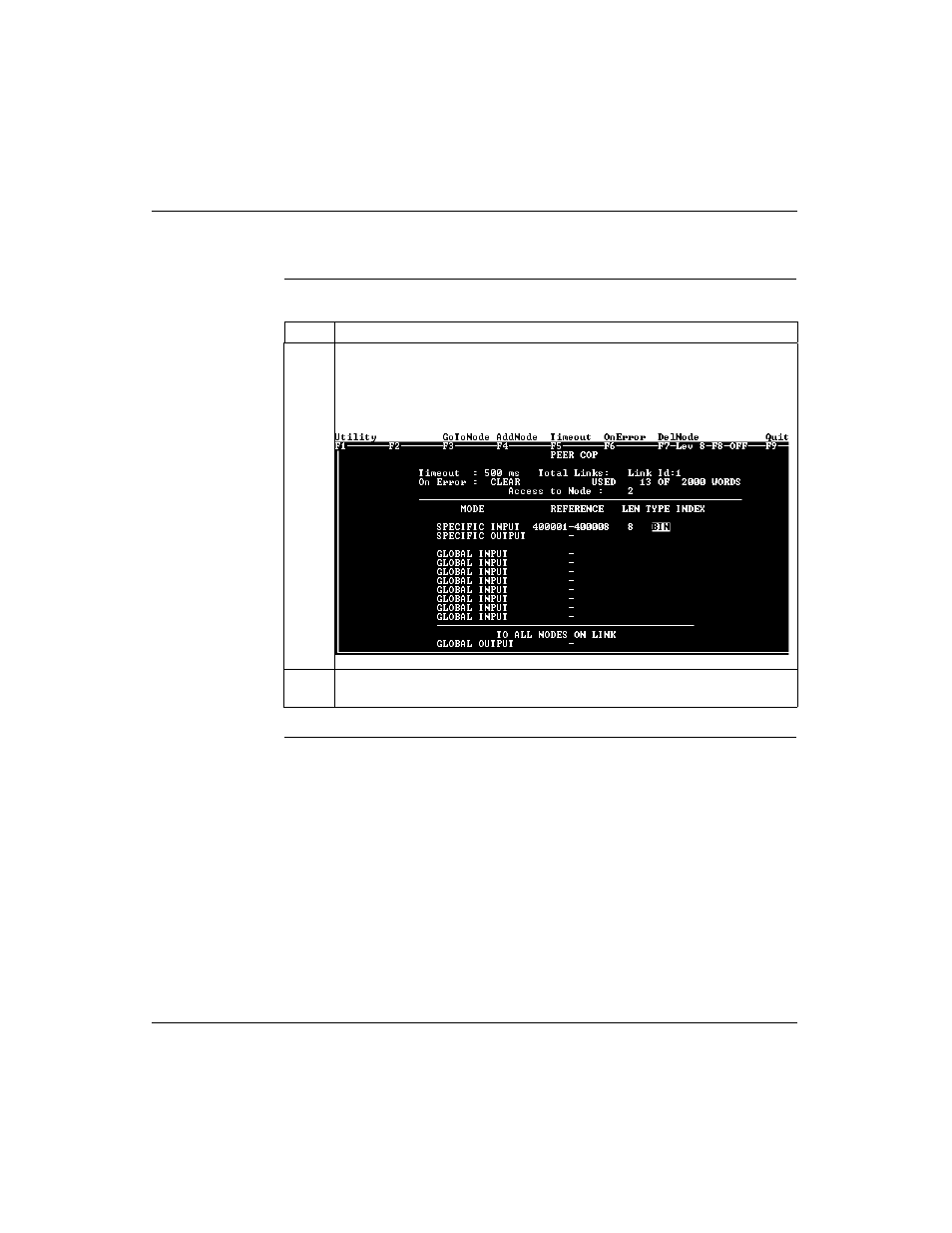

Type the value 8 in the LEN column of the SPECIFIC INPUT field to indicate the
number of registers that will be received. Push
Result: The REFERENCE field is completed automatically and the cursor moves
to the TYPE column.
3
With the TYPE column of the SPECIFIC INPUT filed set to BIN, push
twice.
