Assembling Momentum Components
870 USE 101 10 V.2
103
Disassembling a Module with an Option Adapter, Continued
Procedure:
Removing the
Adapter
Assembly from
the I/O Base,
Continued
Continued on next page
Step
Action
4
Once snaps 1 and 2 have been disengaged, use the screwdriver to release
snaps 3 and 4 on the front of the assembly.
5

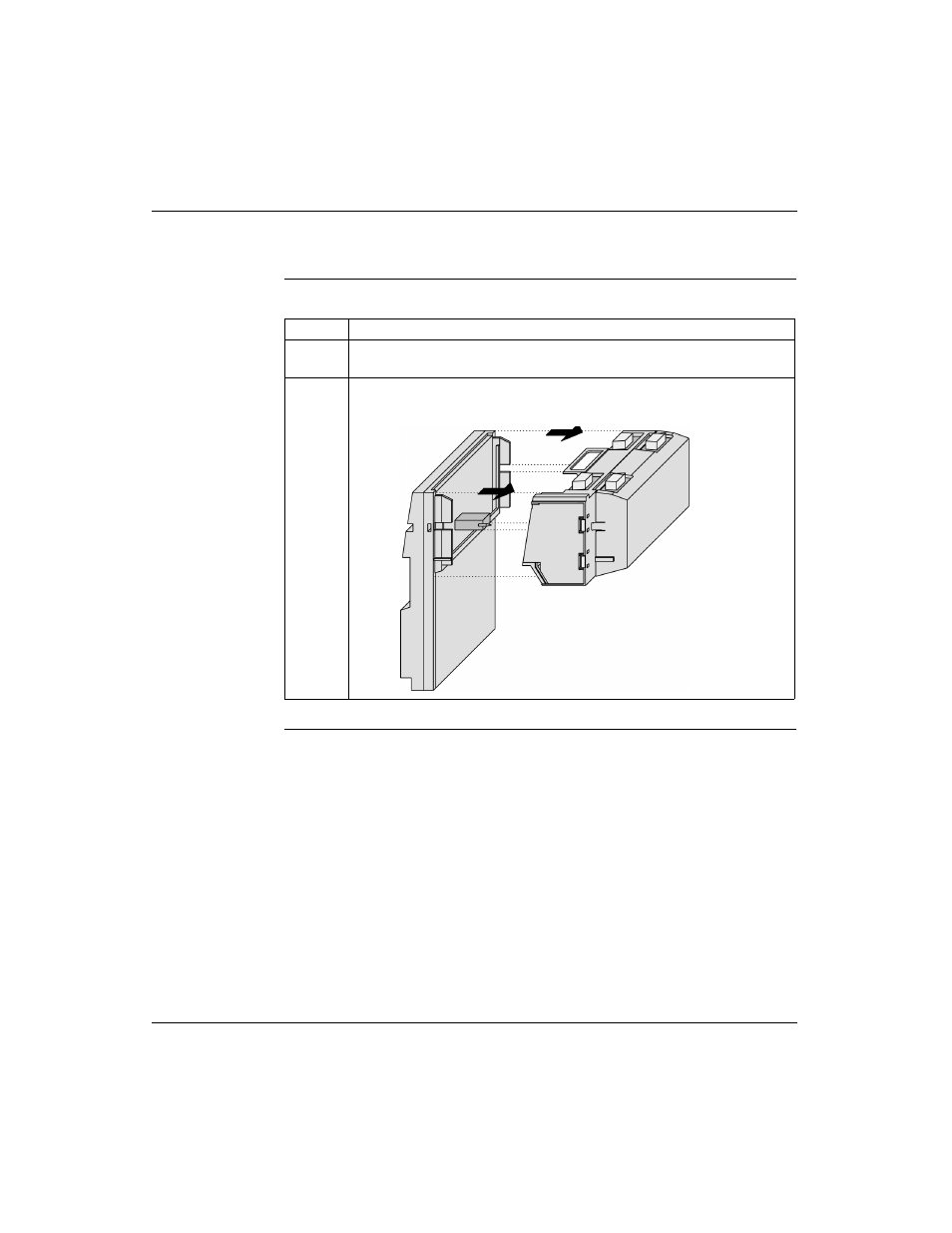

Gently lift the stirrup on the back of the Option Adapter with your fingers until it
disengages from the bottom of the I/O base. Then lift the Option Adapter and
M1 assembly from the I/O base.
