Overview of Momentum M1 Processor Adapters
870 USE 101 10 V.2 47
171 CCC 960 20
Overview This section describes the 171 CCC 960 20 Processor Adapter, including key
features, a illustration and specifications.
Key Features The key features of this Processor Adapter are:
l Ethernet port
l
I/OBus port
l 544K bytes of internal memory
l 50 MHz clock speed

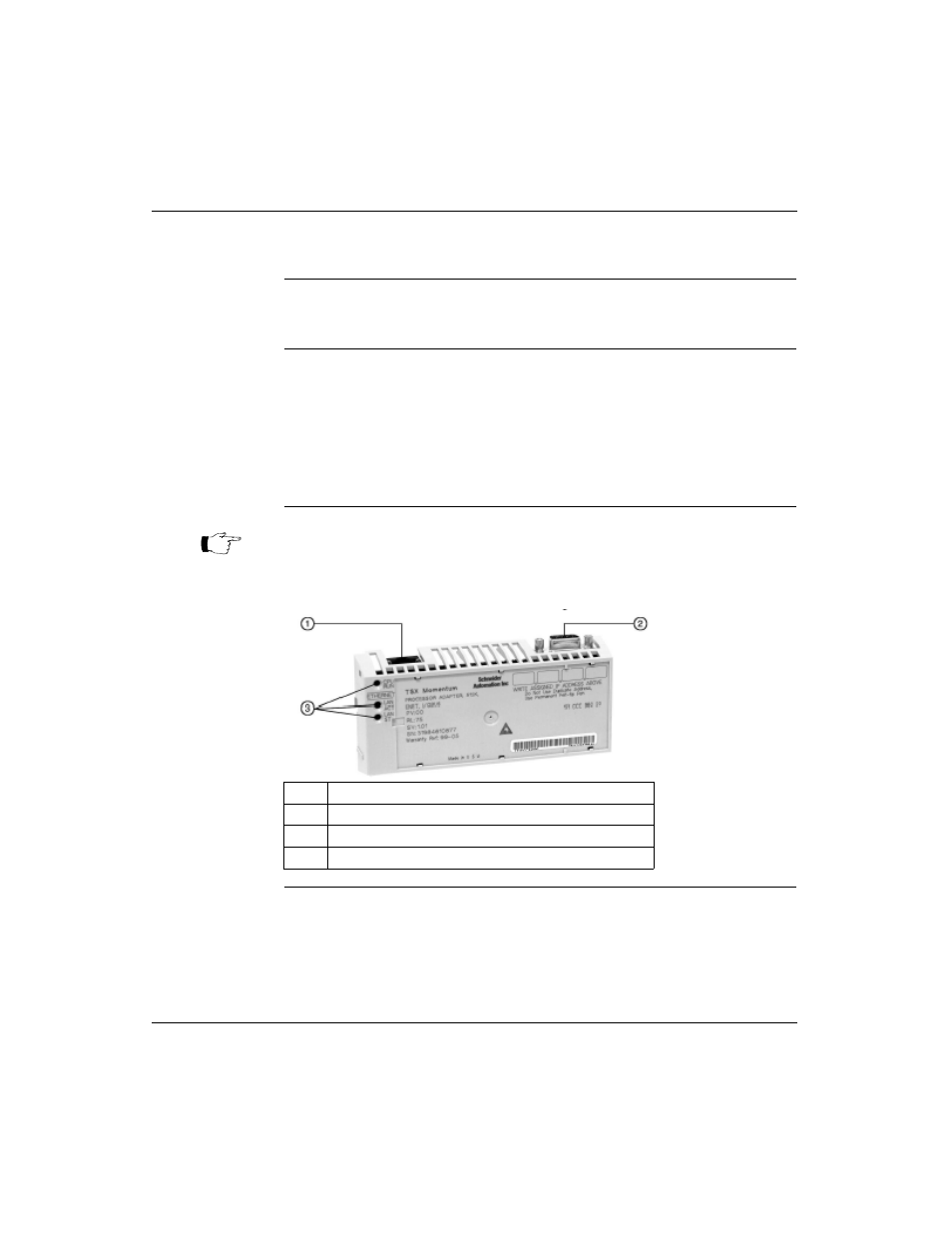

Illustration The connectors and LED indicators are shown in the following illustration:
Continued on next page
Note: The Ethernet port connector looks like a Modbus port connector. Do not
attempt to use an Ethernet adapter as a Modbus unit. Do not attempt to
place a Modbus connector in an Ethernet connector.
Label Description
1 Ethernet port connector
2 I/OBus port connector
3 LED indicators
