Using the Modbus Plus Ports
870 USE 101 10 V.2 191
Cable Accessories for Modbus Plus Networks
Overview This section describes the cables, connector and terminating device which should
be used in constructing a Modbus Plus network for Momentum components.
Cable Within
Clusters Cable for connecting two Modbus Plus devices within a cluster is available from
Schneider Automation in two lengths. These cables have a black boot.
Continued on next page

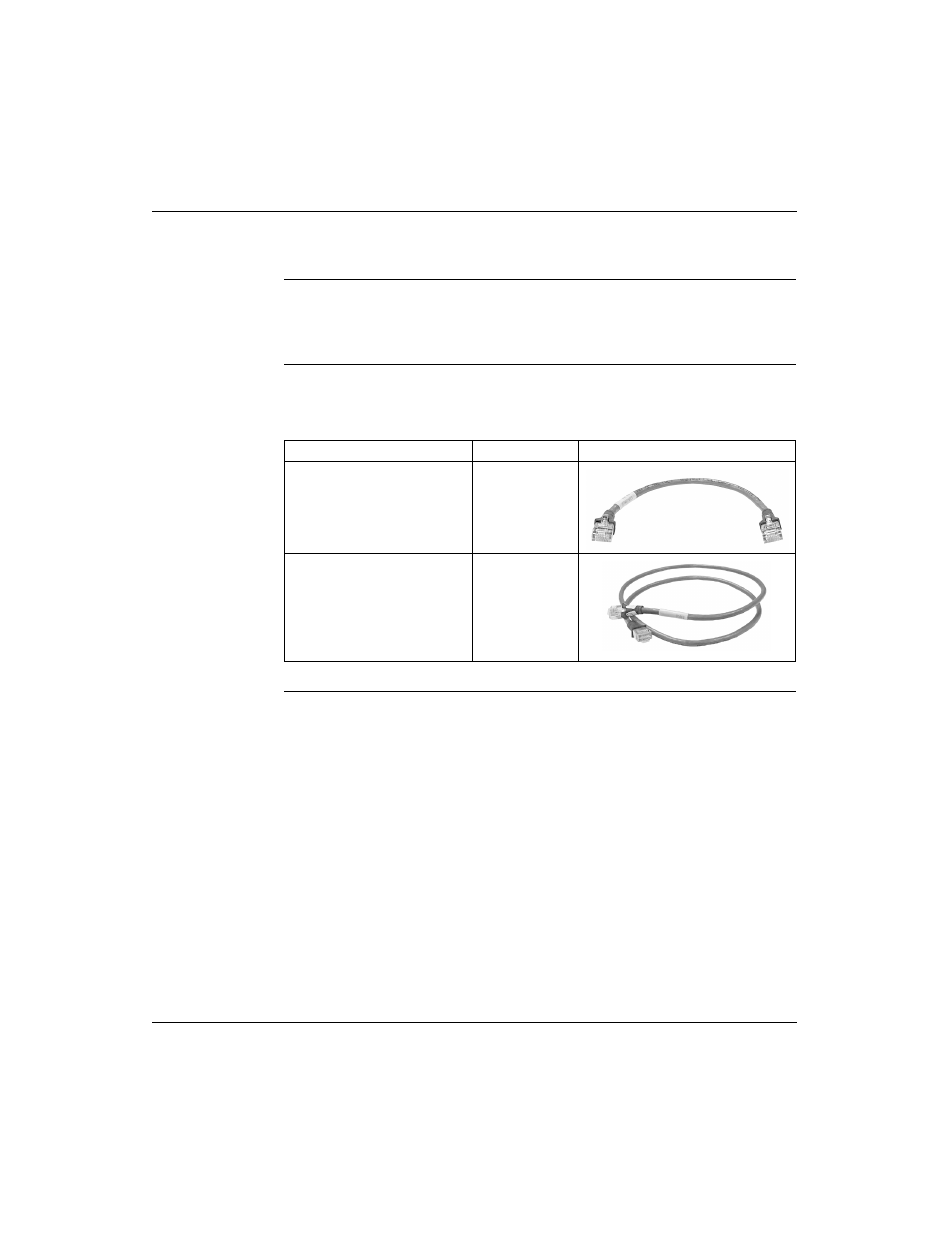

Description Part Number Illustration
Modbus Plus or Modbus RS485
Short Interconnect Cable (10”) 170 MCI 020 10
Modbus Plus or Modbus RS485
3 ft. Interconnect Cable 170 MCI 020 36
