Using Peer Cop with Modsoft
300
870 USE 101 10 V.2
Defining References for the Supervisory Computer, Continued
Specifying
References for
Node 2,
Continued
Continued on next page
Step
Action
4

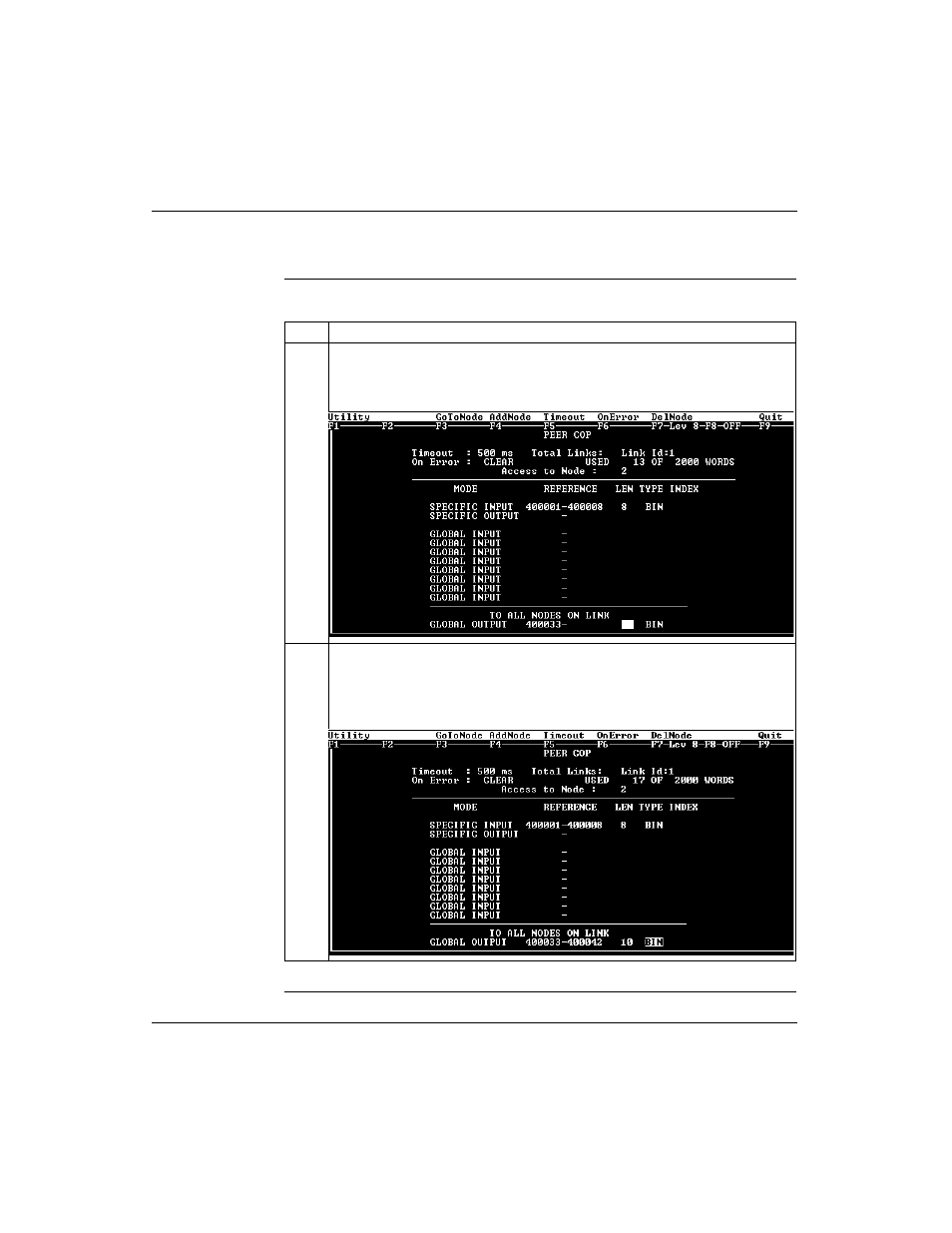

In the REFERENCE column of the GLOBAL OUTPUT field (at the bottom of the
screen), type 400033, the first register which will be sent. Push
Result: The cursor moves to the LEN column.
5
Type the value
10
in the LEN column of the GLOBAL OUTPUT field to indicate the
number of registers to be sent. Push
Result: The REFERENCE field is completed automatically and the cursor moves to
the TYPE column.
