Front Panel Components, Continued
Modbus Plus
Address
Switches
The two rotary switches on the Option Adapter are used to set a Modbus Plus node

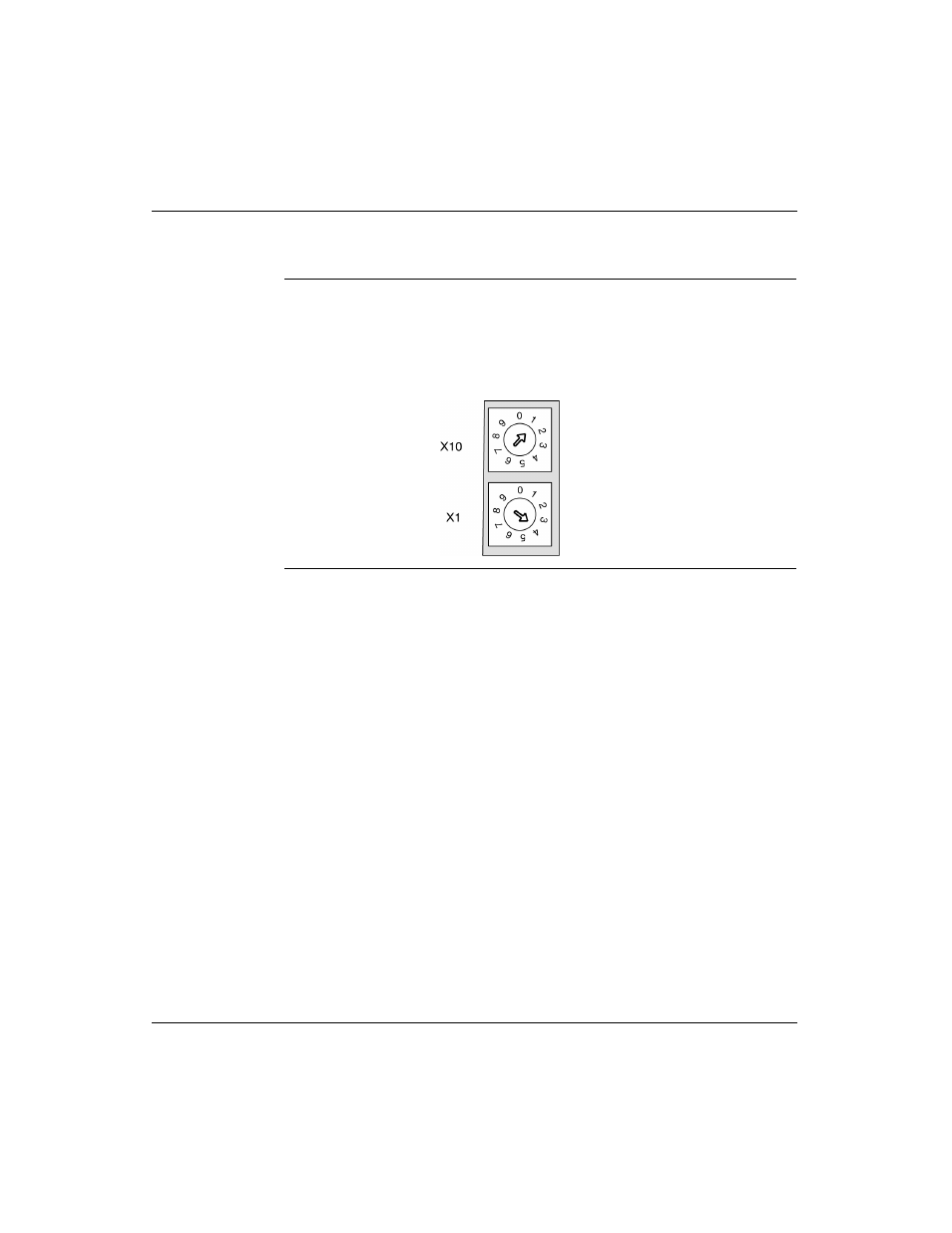

address for the CPU module. The switches are shown in the following illustration.
Their usage is described in detail in
Modbus Plus Addresses on page 198.
The switches in this illustration are set to address 14.
