Using Peer Cop with Modsoft

870 USE 101 10 V.2

289

Specifying References for Input and Output Data, Continued

Defining the
Global Inputs

Now the M1 needs to be Peer Copped to receive five words of global data from the
supervisory PLC at Modbus Plus address 1. Follow the steps in the table below to
specify the global input references.

Continued on next page

Step Action

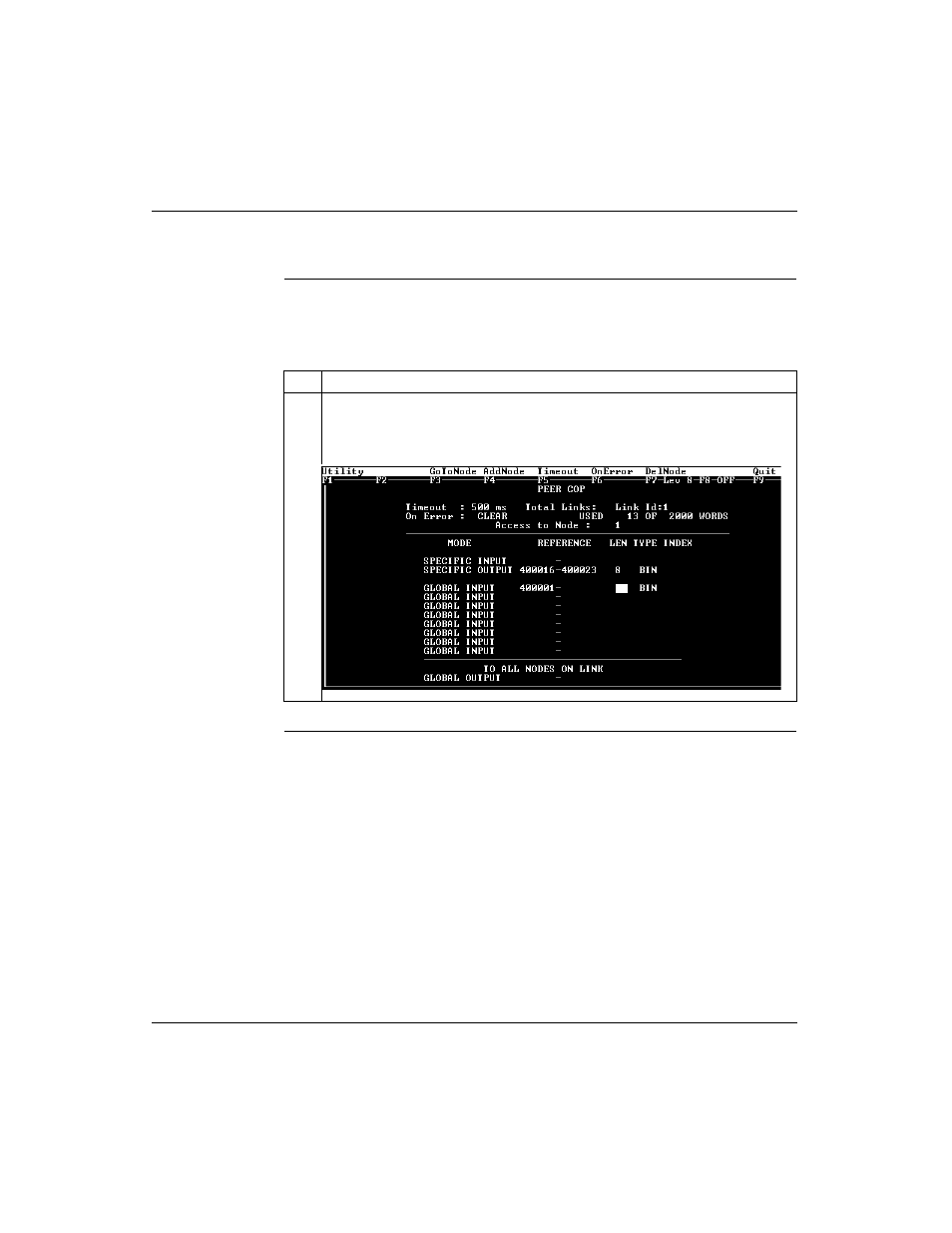

In the REFERENCE column on the first line of the GLOBAL INPUT field, type the
value 400001, the first register in which the CPU will store data. Push .

Result: The cursor moves into the LEN column of the GLOBAL INPUT field.
