Accessing and Editing the I/O Map, Continued
Local I/O Only
This screen is always used to I/O Map the local I/O base only. No other I/O base
units can be I/O Mapped on this screen.

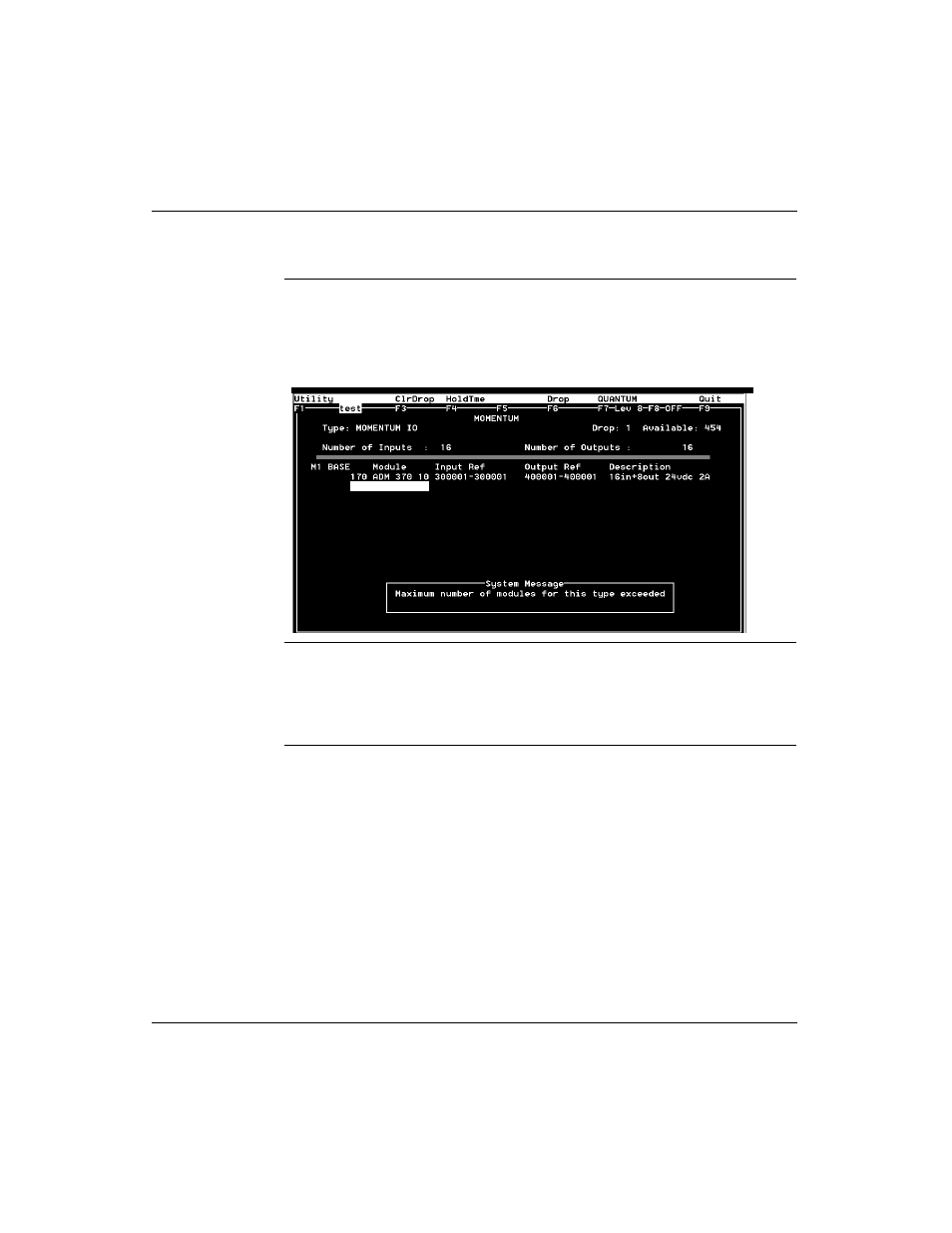

If you attempt to select a second Momentum I/O base in this screen, the following
error message appears:
I/O Bus: A
Special Case
If you are I/O Mapping a Processor Adapter which supports I/OBus communication
stations, you will need to go to a separate I/O Map screen for Drop 2. That process
is described in
I/O Mapping an I/OBus Network with Modsoft on page 247.
