Assembling Momentum Components
102
870 USE 101 10 V.2
Disassembling a Module with an Option Adapter, Continued
Procedure:
Removing the
Adapter
Assembly from
the I/O Base
Follow the steps in the table below to remove the assembled Option Adapter and
M1 Processor Adapter from the I/O base.
Continued on next page
Step
Action
1
Be sure that the power is off by removing the terminal connectors from the
I/O base.
2
Remove the assembled unit from its wall or DIN rail mounting surface.
CAUTION
EXPOSED CIRCUITRY IN BATTERY COMPARTMENT
Use care when you insert a screwdriver in the battery compartment so that you
do not scratch any exposed elements.
Failure to observe this precaution can result in equipment damage.
3

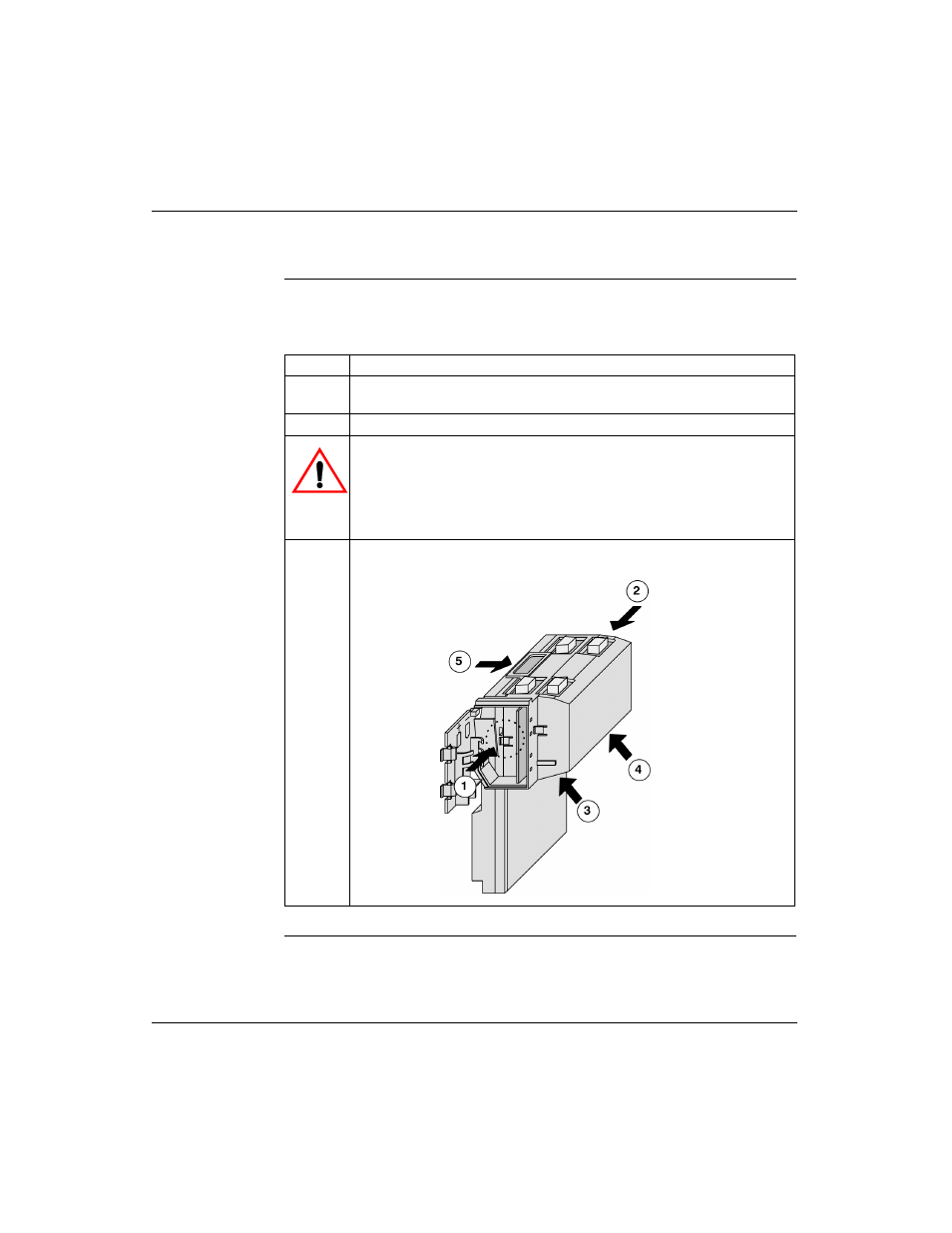

Open the battery door and use a flat-head screwdriver to release snaps 1 and 2
as shown in the illustration below.
