Using the Modbus Plus Ports
870 USE 101 10 V.2 195
Pinouts and Wiring Illustrations for Modbus Plus Networks, Continued
Interconnect

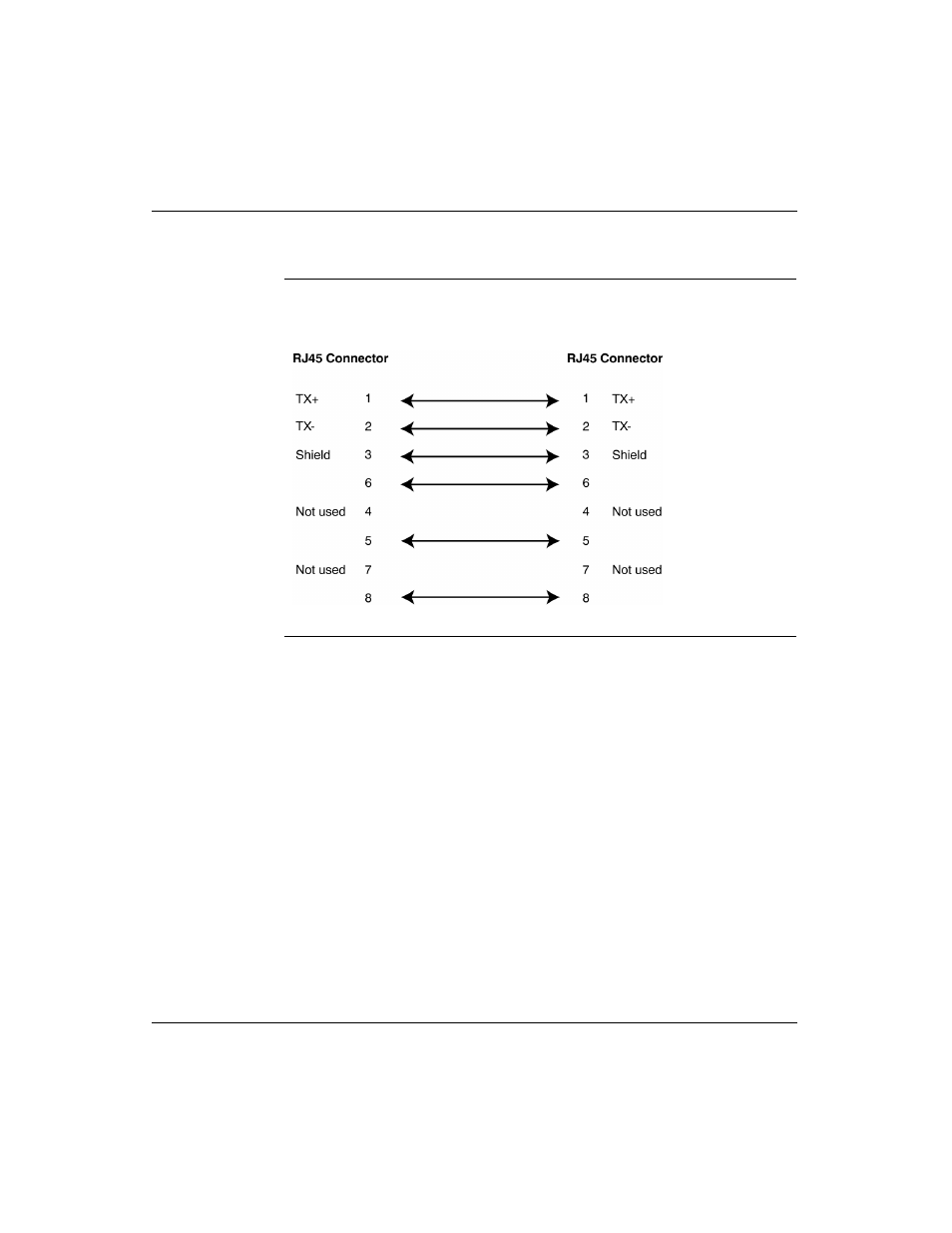

Cables The following illustration shows the pinout for the 170 MCI 02x xx Modbus Plus or
Modbus RS485 Interconnect Cables (10 in, 3 ft., 10 ft. and 30 ft.:
Continued on next page
