Using the Ethernet Port
870 USE 101 10 V..2
148
Pinouts
Overview
This section contains pinouts for wiring an Ethernet network for Momentum
components.
RJ45 Pinout

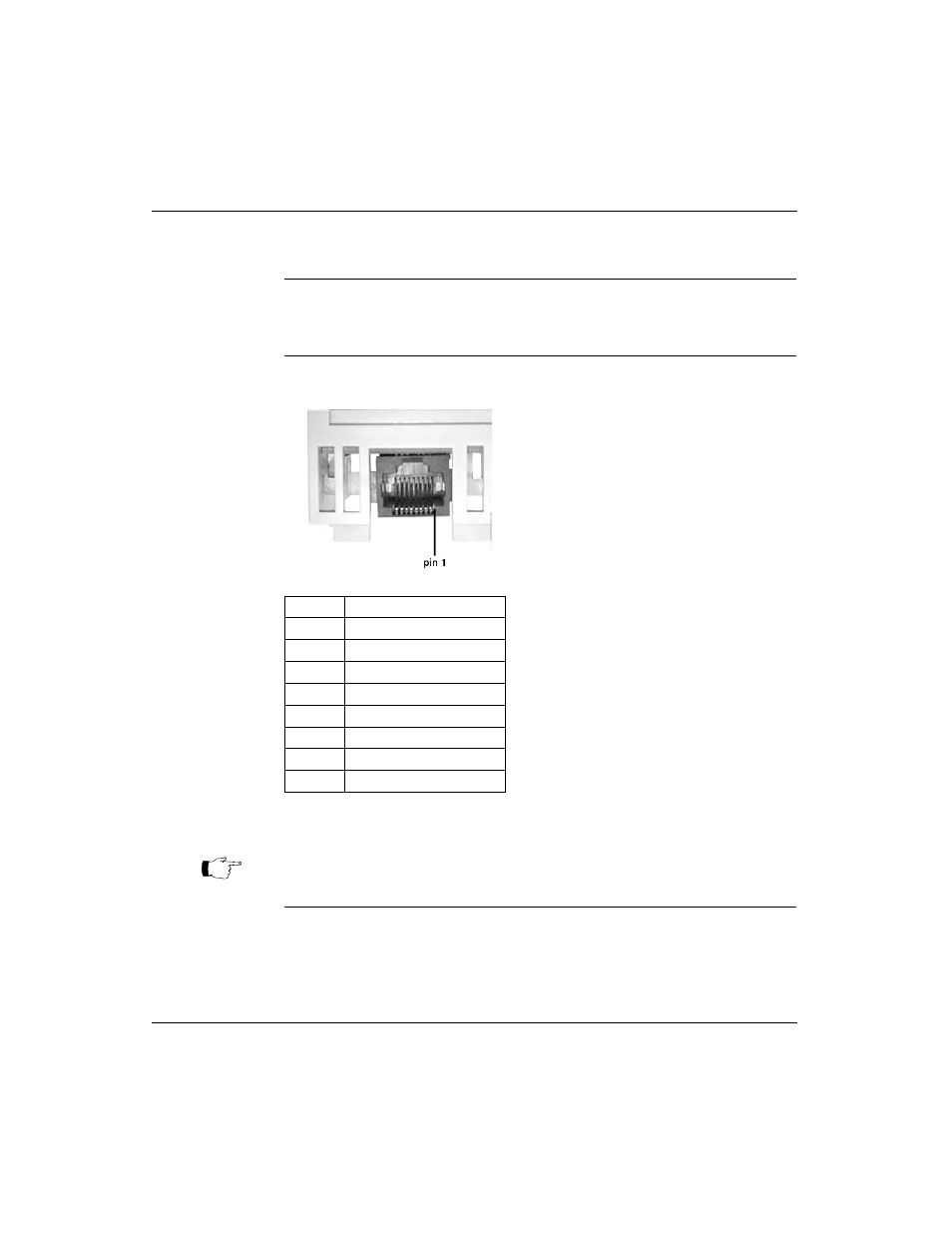

The illustration below shows the pinouts for wiring an RJ45 connector for Ethernet:
Pin
Function
1
TXD +
2
TXD -
3
RXD +
4
5
6
RXD -
7
8
Note: These are industry standard pinouts. Prefabricated patch cables can be
used.
