Using Peer Cop with Modsoft
294 870 USE 101 10 V.2
Defining the References for the Next Node, Continued
Defining Global
Inputs Follow the steps in the table below to define the global input data from the
supervisory PLC at Modbus Plus address 1.
Continued on next page
Step Action

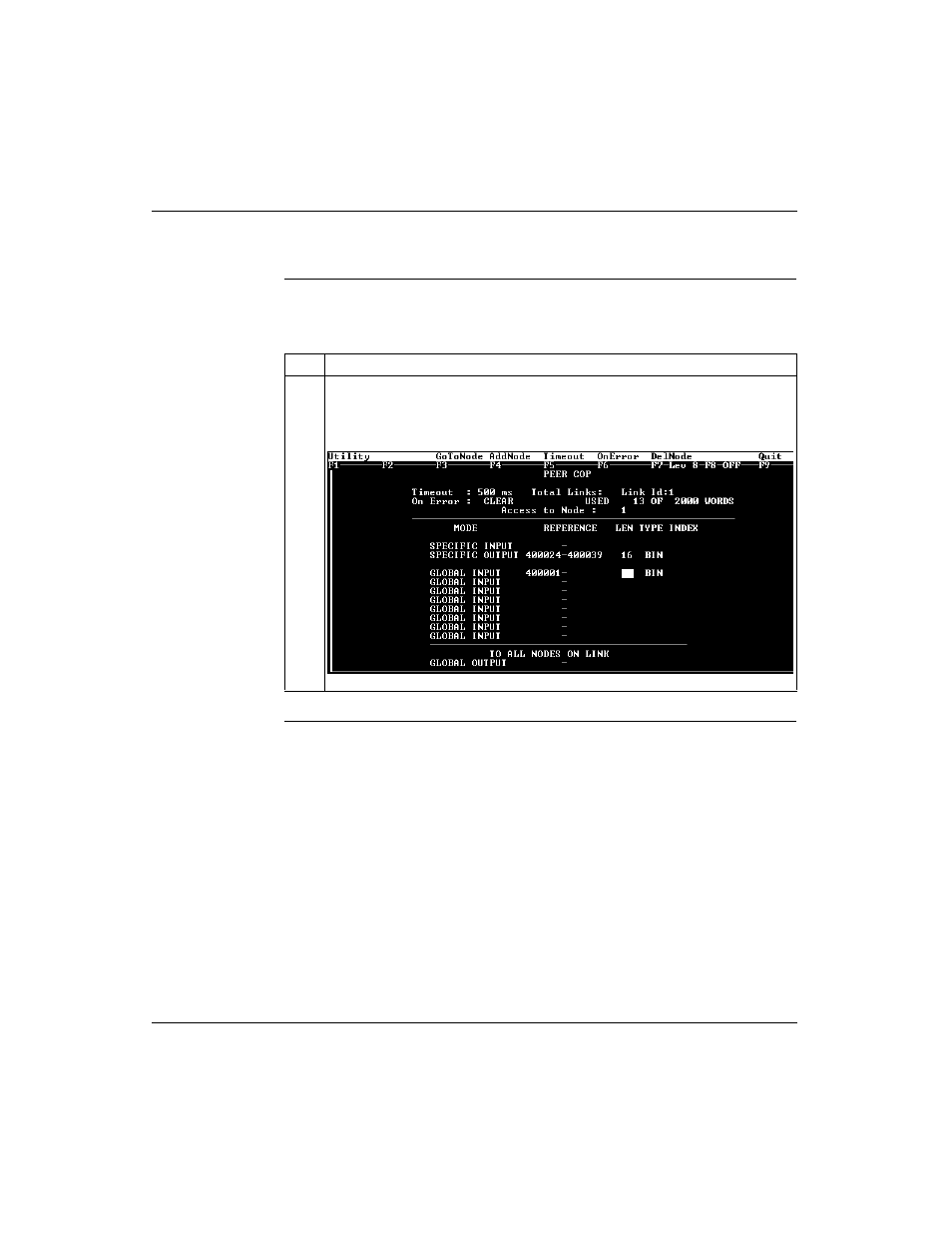

1 In the REFERENCE column of the first GLOBAL INPUT field, type the value 400001,
the first register which will be used to store global input data. Push .
Result: The cursor moves to the LEN column.
