Assembling Momentum Components
108 870 USE 101 10 V.2
Guidelines for Labeling the CPU, Continued
Example of a

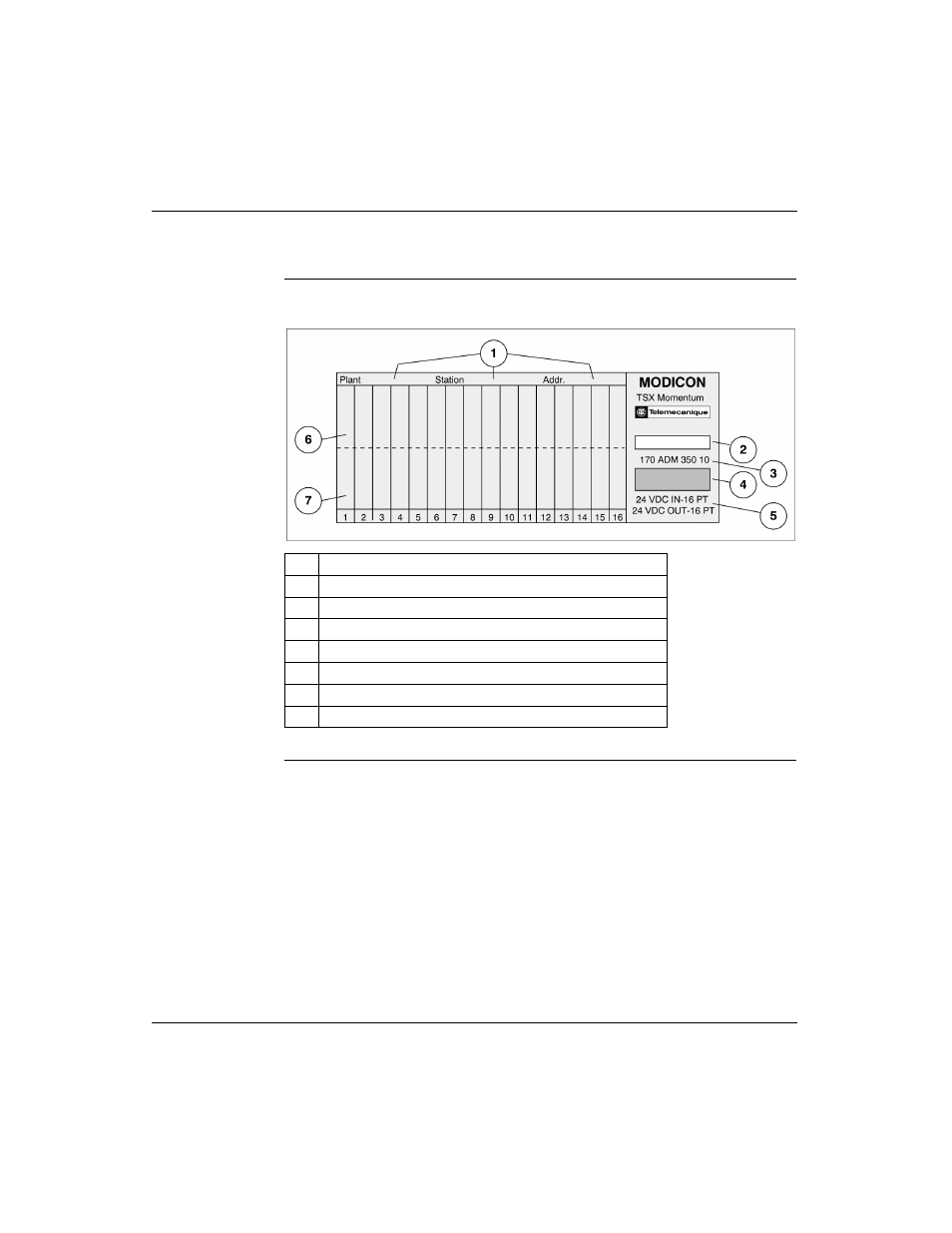

Fill-In Label A fill-in label is illustrated below.
No. Description
1 Fields for plant name, station name and network address
2 Cutout–the model number of the adapter shows through
3 Model Number of the I/O base
4 Color code of the I/O base
5 Short description of the I/O base
6 Field for the symbol name of inputs
7 Field for the symbol name of outputs
