Assembling Momentum Components
100
870 USE 101 10 V.2
Mounting the Assembled Adapters on the I/O Base, Continued
Procedure:
Mounting the
Assembled
Adapters on an
I/O Base,
Continued
Step
Action
3
Push the assembled adapters onto the base, gently pressing the locking tabs
inward.

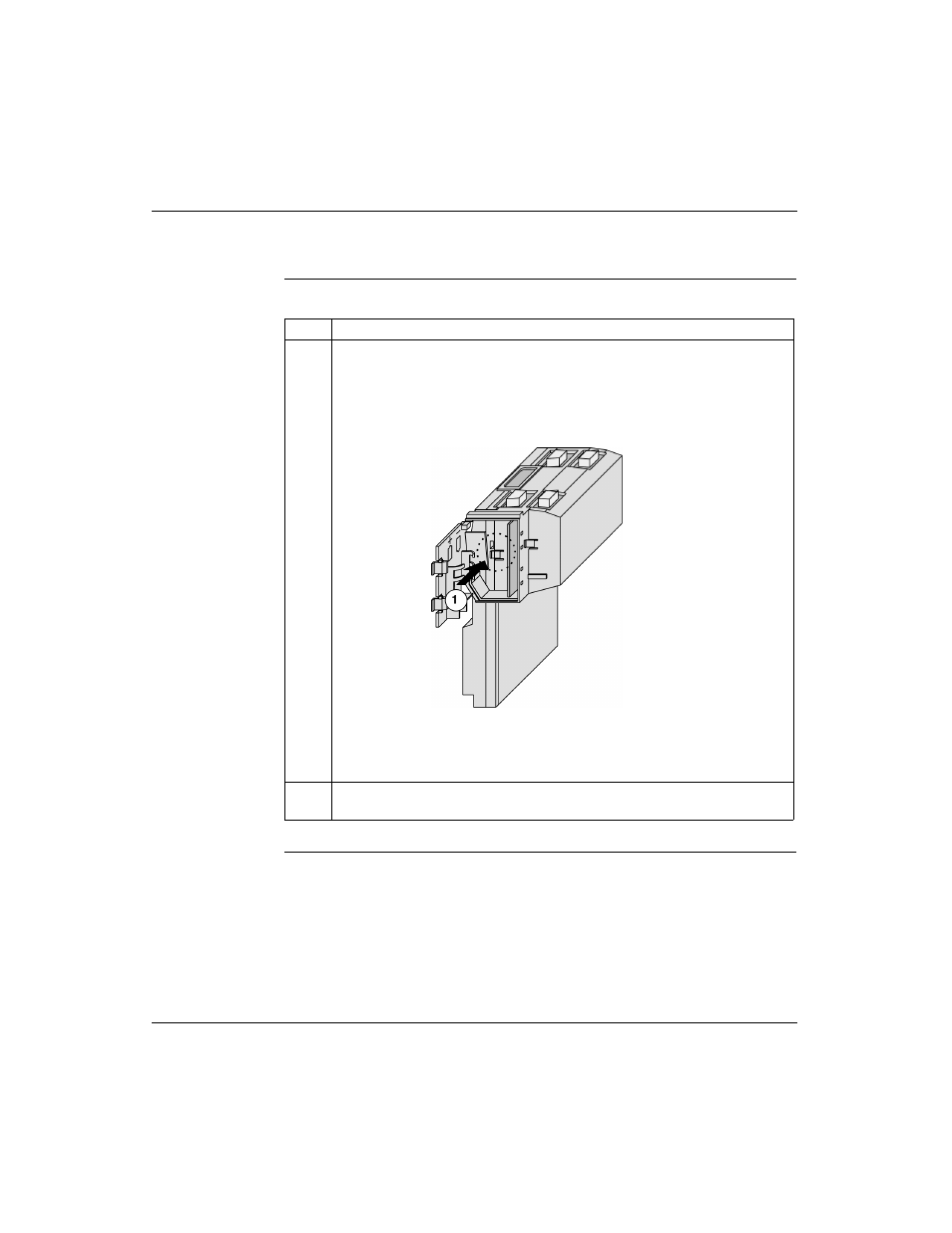

Snap #1 shown in the illustration below will not align properly with the mating slot in
the I/O base unless the Option Adapter is placed straight onto the base. Do not
attach just one latch and rotate the Option Adapter onto the I/O base.
Result: The locking tabs on each side of the Option Adapter slide inside the I/O
base and out through the locking slot. The 12-pin connectors on the two units are
mated to each other in the process.
4
Apply slight pressure to the top of the stirrup on the back of the Option Adapter so
that it snaps into place on the bottom of the I/O base.
