I/O Mapping an I/OBus Network with Concept
870 USE 101 10 V.2 363
Accessing an I/O Map Screen for an I/OBus Network
Overview This section describes how to access an I/O Map screen for an I/OBus network
using Concept 2.2.
Procedure To access the I/O Map screen for your I/OBus network, perform the steps in the
following table.
Continued on next page
Step Action
1 From the Configure menu, select I/OMap.

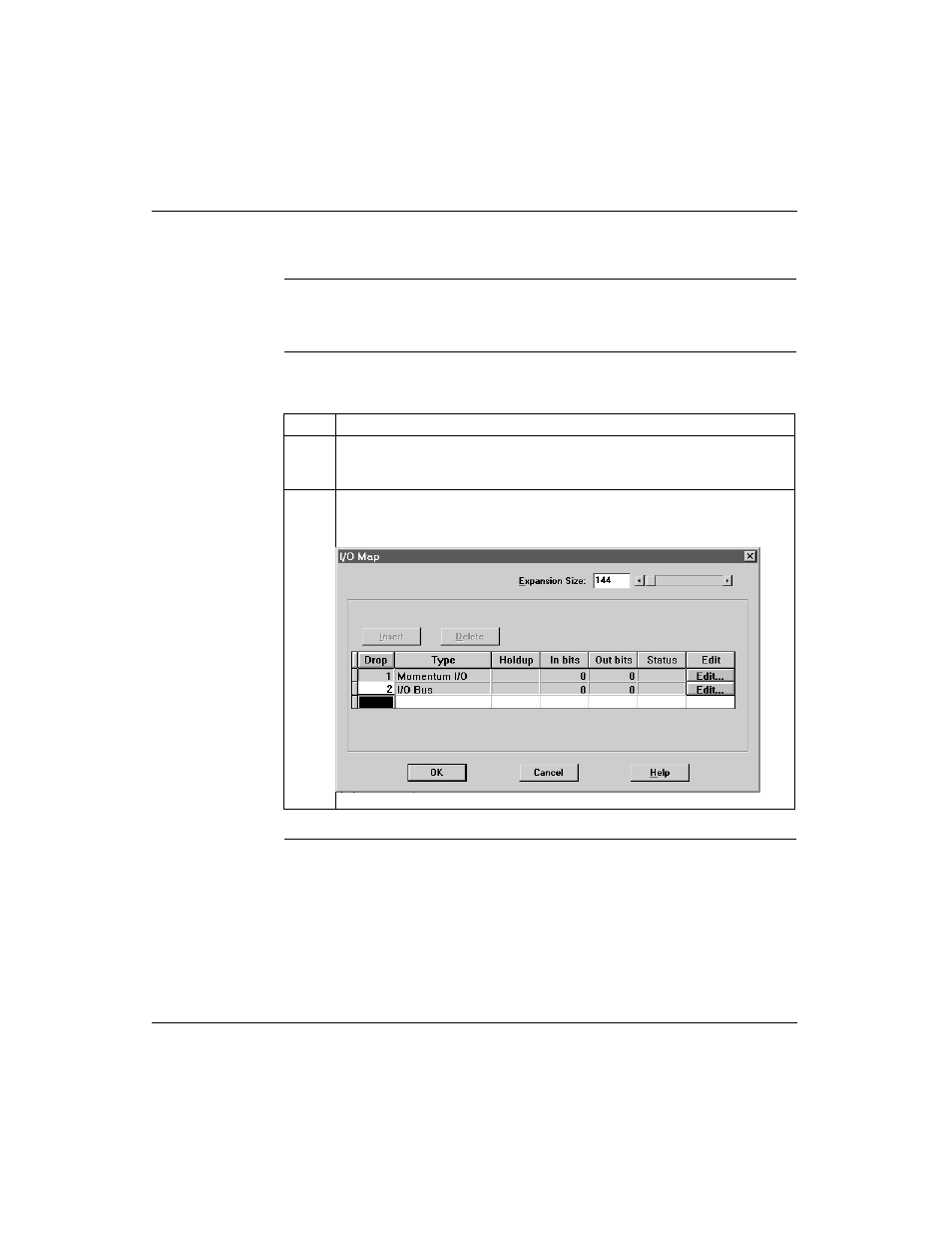

Result: The I/O Map dialog is displayed .
2 Click on the Insert button.
Result: I/OBus is displayed as the Type for Drop 2.
