Option Adapters
80
870 USE 101 10 V.2
Front Panel Components
Overview
The front panel includes:
l
Two 9-pin D-shell connectors for Modbus Plus communications
l
Three LED indicators
l
Battery compartment
l
Address switches
Illustration

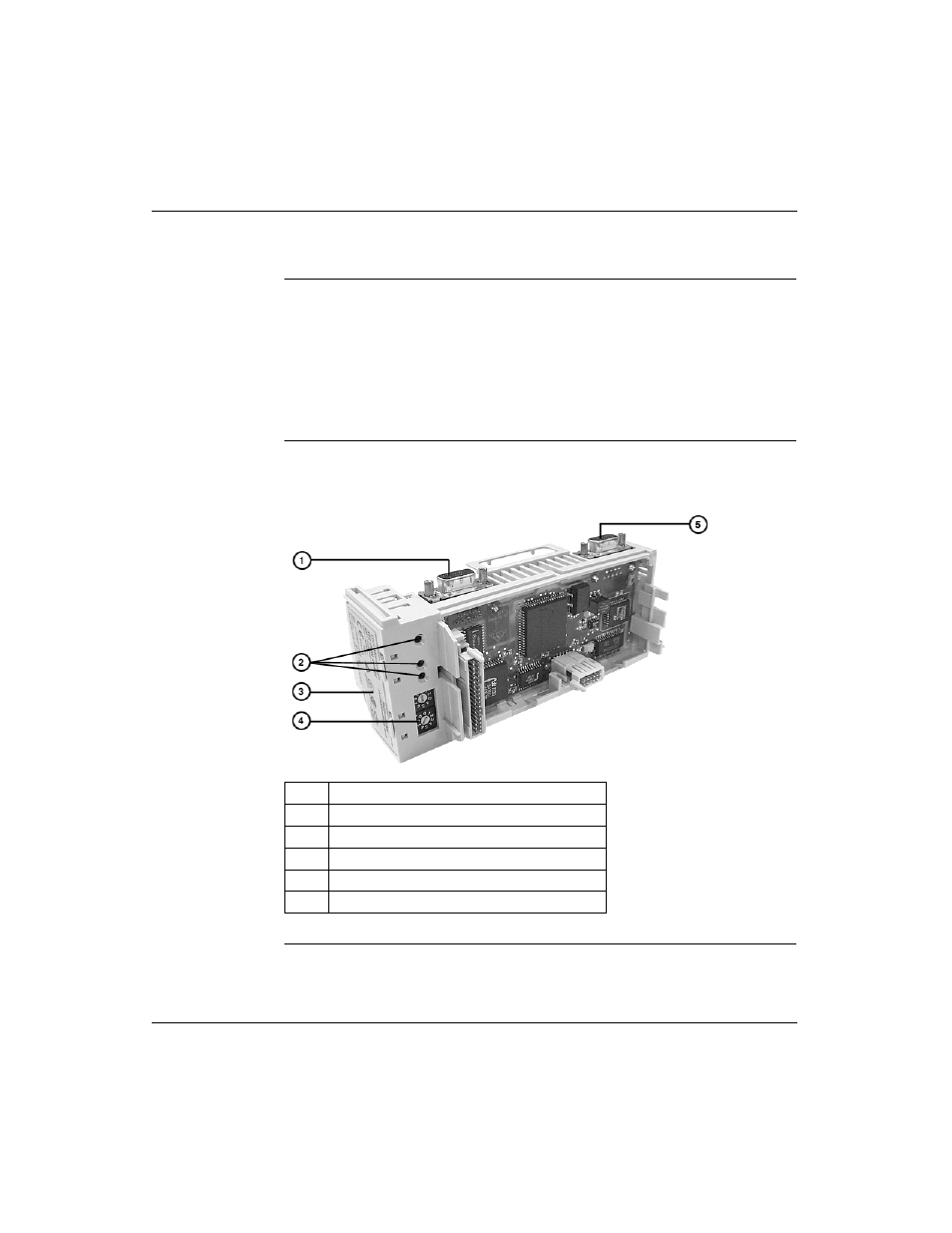

The illustration below shows the LED indicators, address switches, battery
compartment and Modbus Plus connectors.
Continued on next page
Label Description
1
9-pin D-shell connector for Modbus Plus port B
2
Array of three LED indicators
3
Battery compartment door
4
Address switches for Modbus Plus
5
9-pin D-shell connector for Modbus Plus port A
