Configuring an M1 CPU with Concept
870 USE 101 10 V.2 357
Section 12.5
I/O Mapping the Local I/O Points
Accessing and Editing the I/O Map
Introduction Every M1 Processor Adapter is assembled on an I/O base. The I/O points on the
base are the local I/O for that processor.
As part of the configuration process, you need to create an I/O Map for the local
I/O. The I/O Map assigns the appropriate range and type of reference values (0
x,
1 x, 3x, or 4x) from the CPU’s state RAM to the input and/or output points on the
local base unit.
Accessing an I/O
Map Screen To access an I/O Map screen from the PLC Configuration screen, select I/O map...
from the Configure menu.

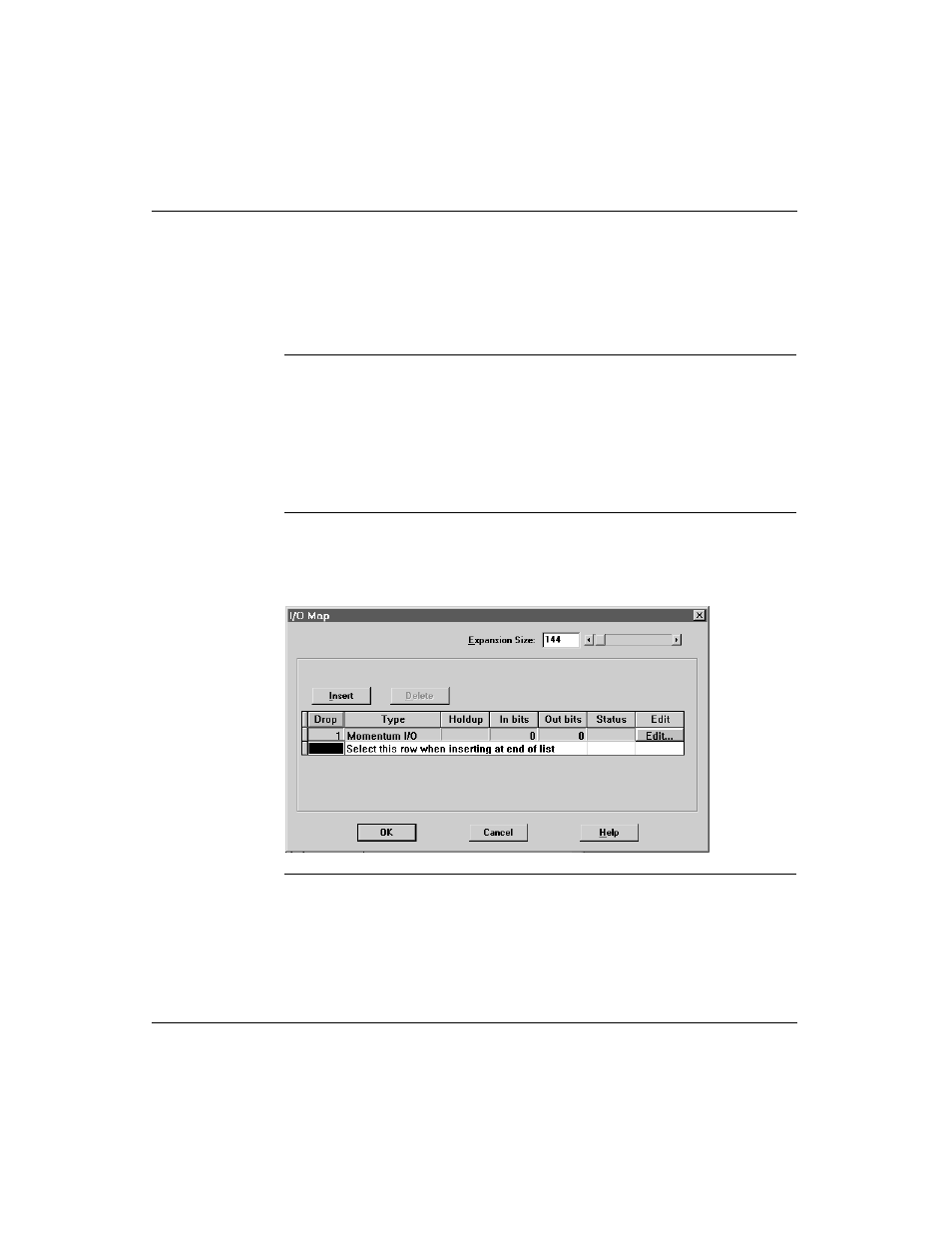

Result: The I/O Map dialog box appears.
Continued on next page
