Configuring an M1 CPU with Modsoft
870 USE 101 10 V.2 221
Changing the Size of the I/O Map, Continued

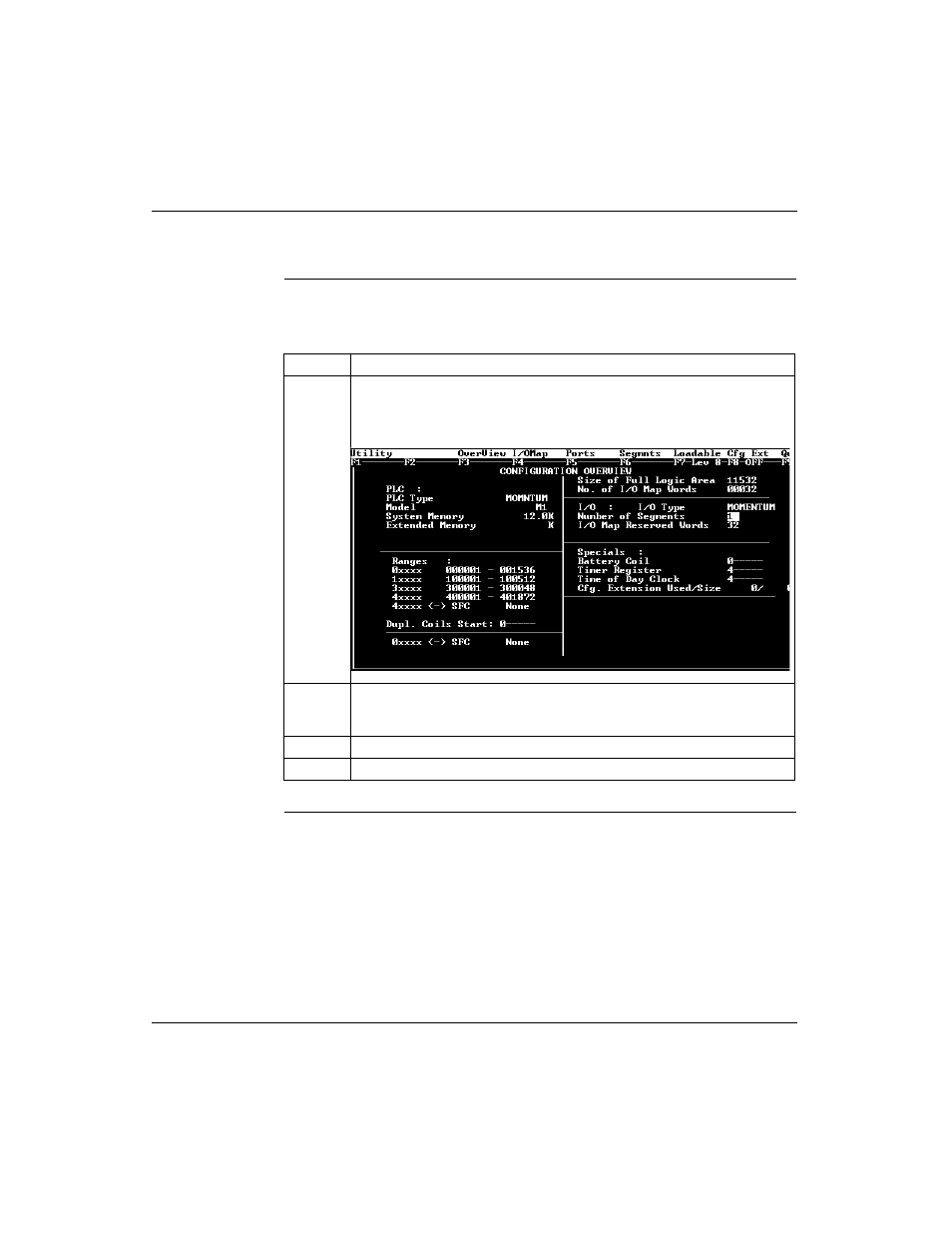

Procedure From the Configuration Overview screen, follow the steps below to change the size
of the I/O Map:
Step Action
1 From the Overview menu, select I/O.
Result: The cursor will appear in the I/O field of the editor on the number of
segments.
2 Push .
Result: The cursor moves to the I/O Map Reserved Words field.
3 Modify the I/O Map size by typing a new number in this field.
4 Push .
