Configuring an M1 CPU with Concept
358 870 USE 101 10 V.2

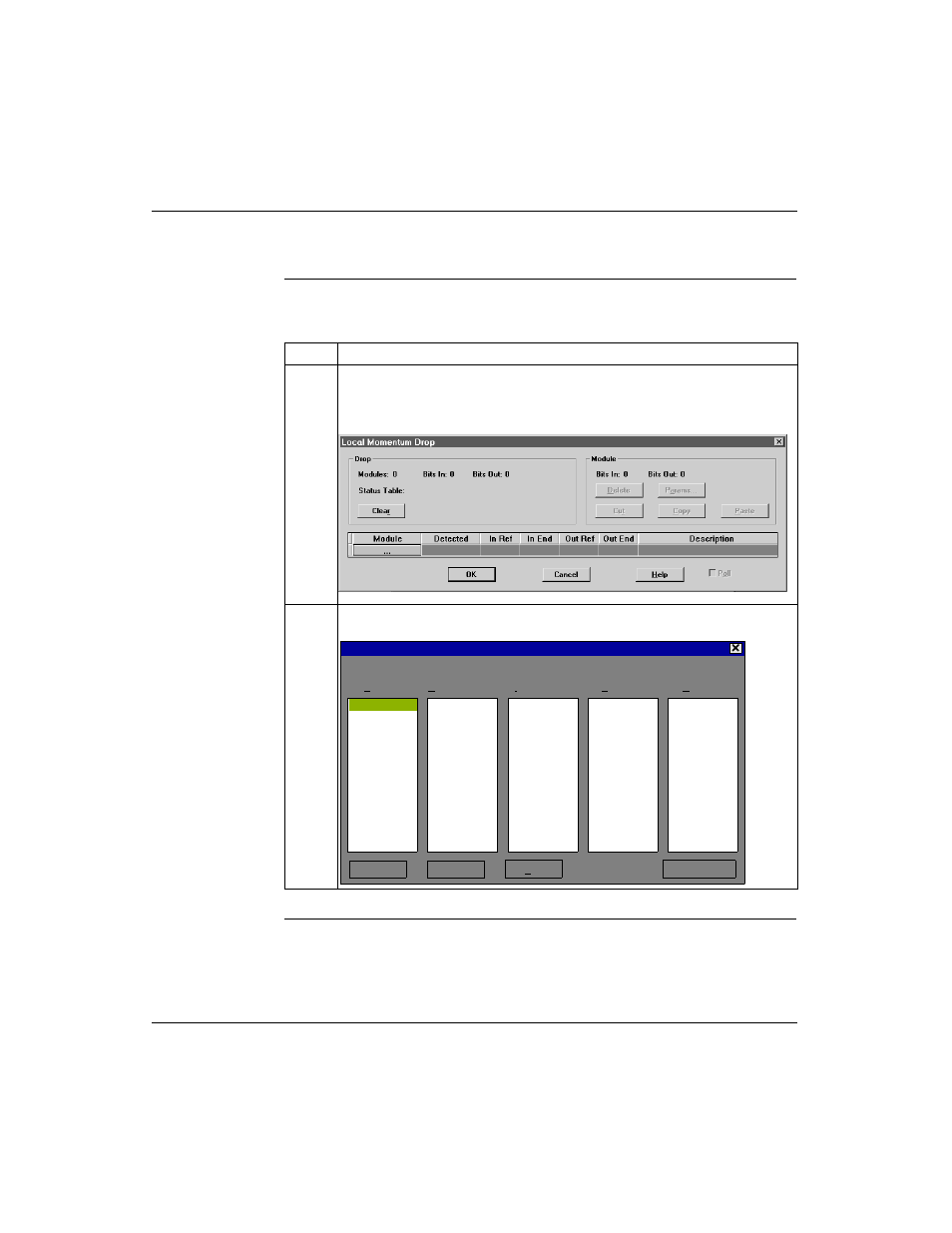

Accessing and Editing the I/O Map, Continued
Editing the Local
I/O Map From the I/O Map dialog box, perform the steps in the following table to edit the
local I/O Map:
Continued on next page
Step Action
1 Click the Edit... button at the end of the row.
Result: The Local Momentum I/O dialog box appears.
2 Click the button under Module and select your local I/O base from the dropdown
menu.
Description : I/O BASE, ANALOG-8CH DIFFERENTIAL INPUT
I/O Module Selection
OK Help Cancel Help on Module
Analog I/O Discrete Input Discrete Output Special Other
AAI-030-00 ADI-340-00 ADO-340-00 AEC-920-00
AAI-140-00 ADI-350-00 ADO-350-00
AAI-520-40 ADI-540-50 ADO-530-50
AAO-120-00 ADM-350-1X ADO-540-50
AAO-921-00 ADM-370-10 ADO-730-50
AMM-090-00 ADM-390-10 ADO-740-50
ADM-390-30
ADM-540-80
ADM-690-5X
