Using the Modbus Ports
870 USE 101 10 V.2 137
Pinouts for Modbus RS485 Networks, Continued
Master
Communication

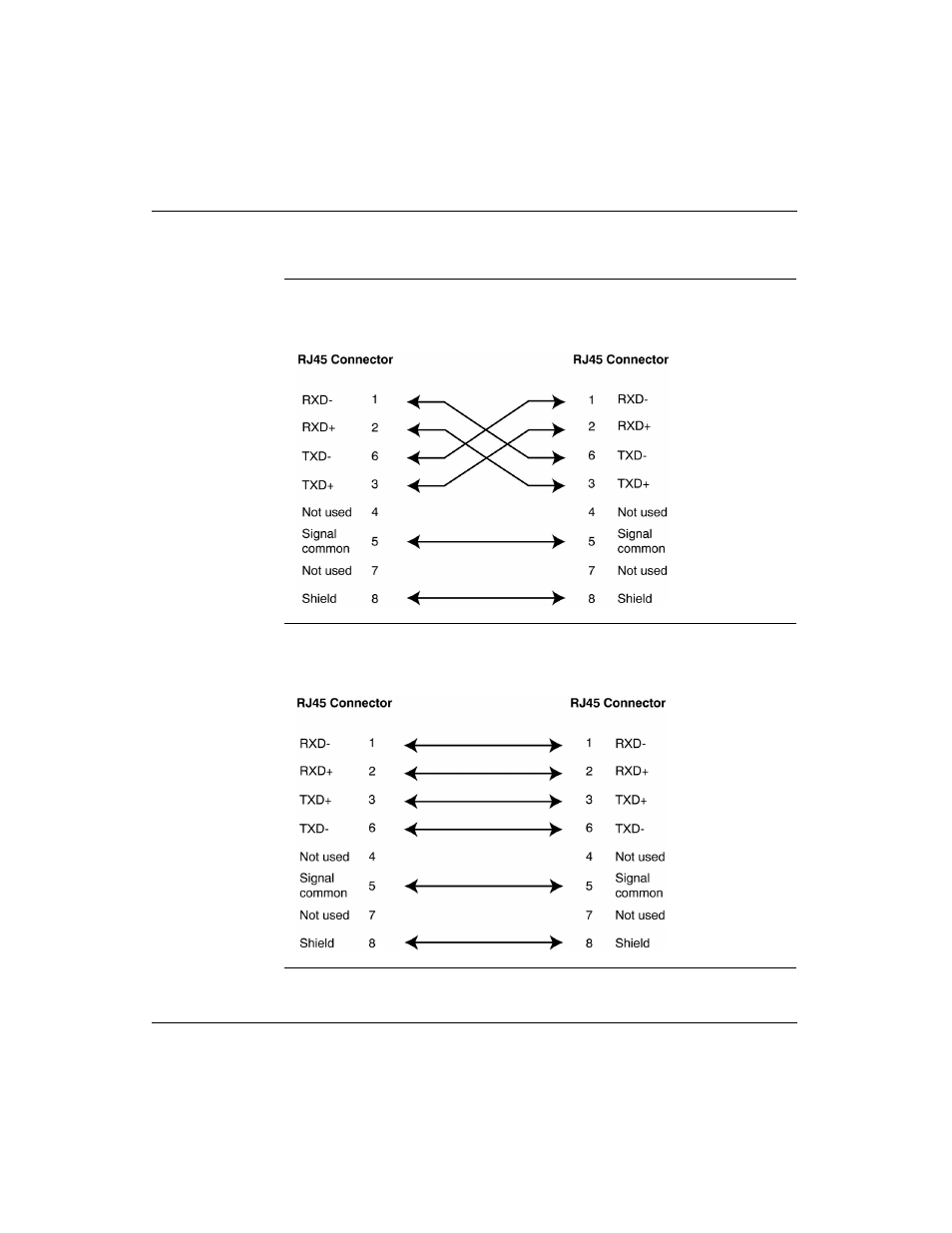

Cable The illustration below shows the pinout for the 170 MCI 041 10 Modbus RS485
(RJ45/RJ45) Master Communication Cable:
Interconnect
Cables The illustration below shows the pinout for the 170 MCI 02x xx Modbus Plus or
Modbus RS485 Interconnect Cables (10 in, 3 ft., 10 ft. and 30 ft.:
Continued on next page
