I/O Mapping an I/OBus Network with Modsoft
250 870 USE 101 10 V.2
Accessing an I/O Map Screen for an I/OBus Network
Overview This section describes how to access an I/O Map screen for an I/OBus network.
Procedure To access the I/O Map screen for your I/OBus network, perform the steps in the
following table.
Continued on next page
Step Action
1 From the Configuration Overview screen, move the cursor onto the I/OMap
command on the top menu and push .

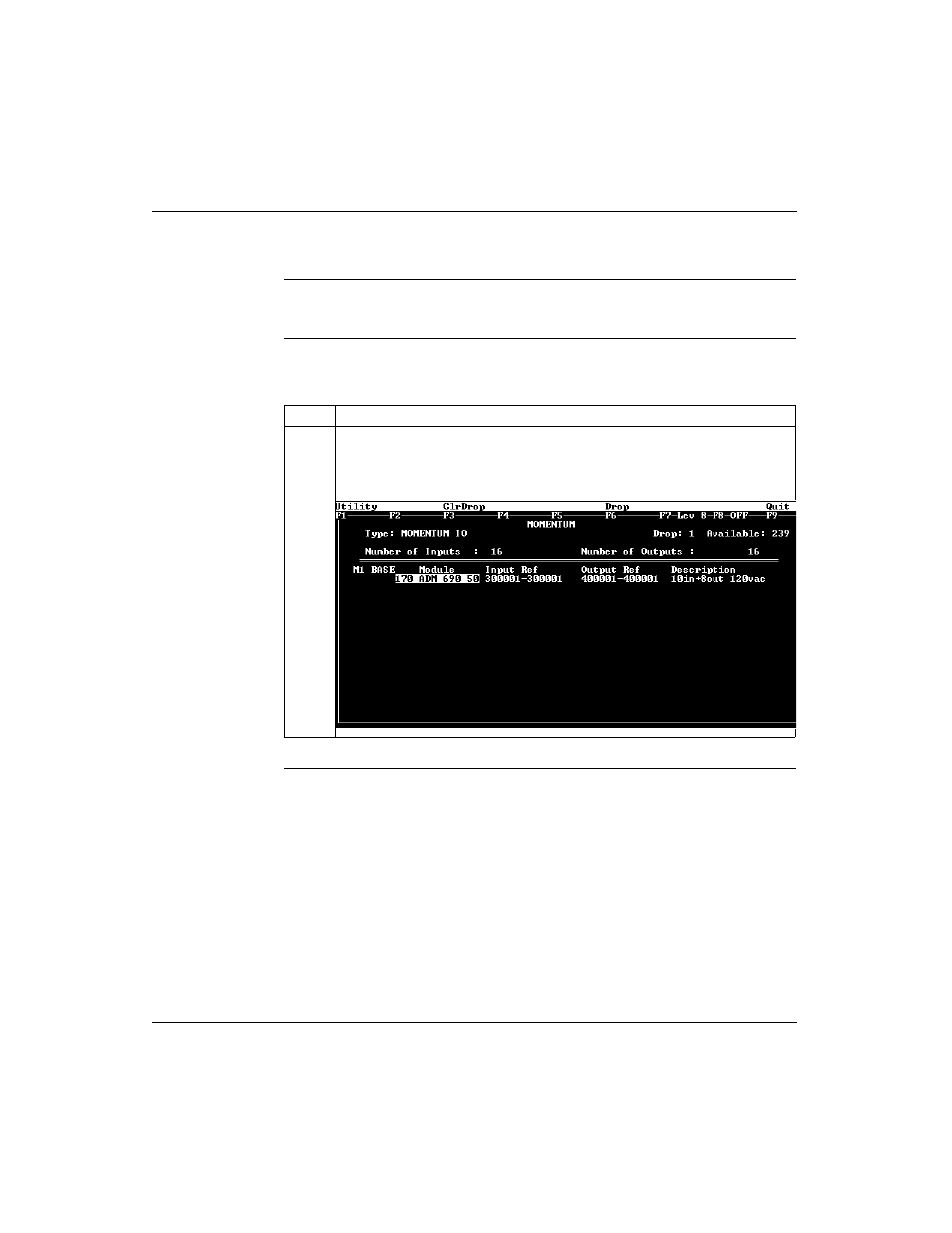

Result: The Type: MOMENTUM I/O screen for the local I/O base appears .
