Using the Modbus Plus Ports
192 870 USE 101 10 V.2

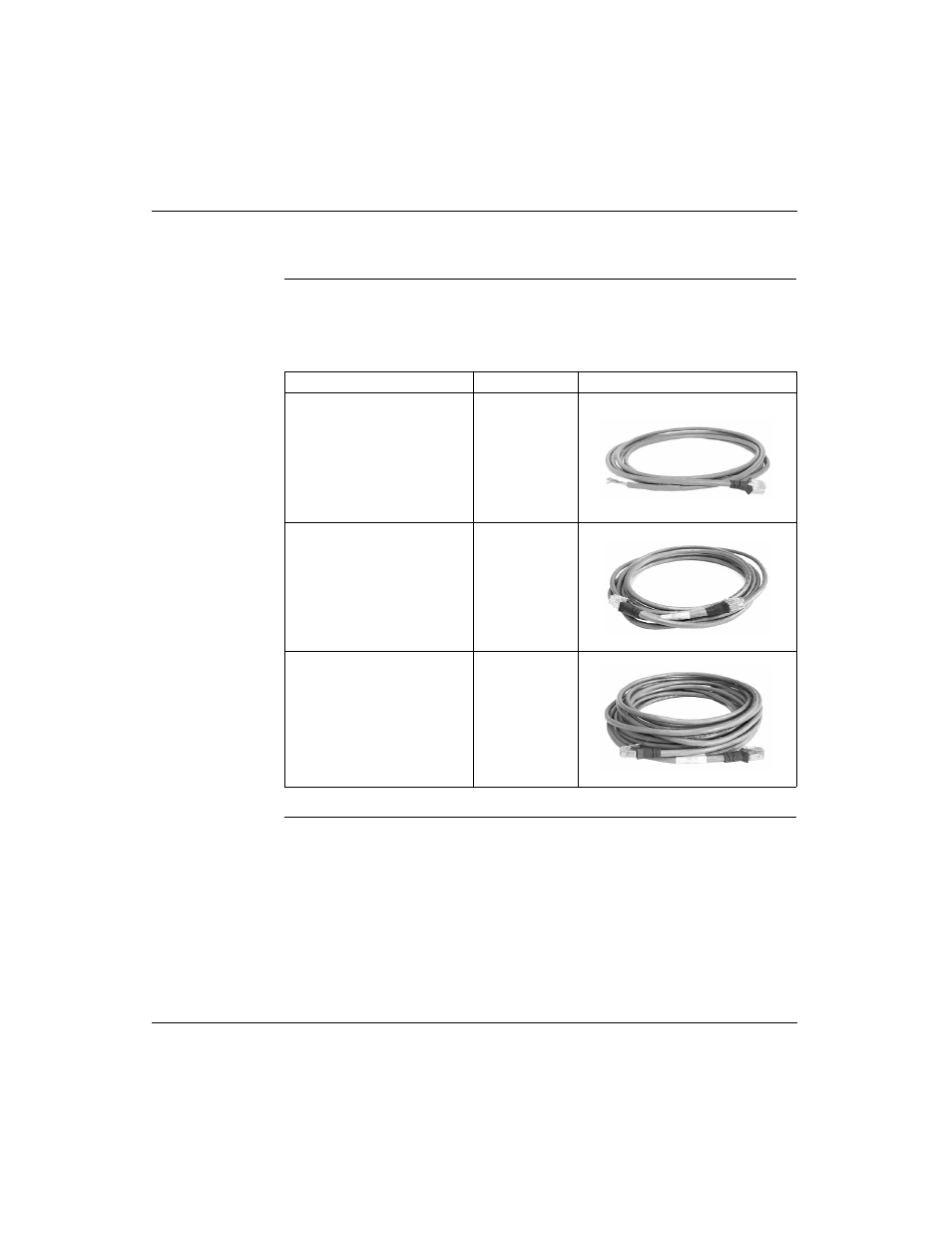

Cable Accessories for Modbus Plus Networks, Continued
Cable Between
Clusters Cable for connecting two Modbus Plus clusters, or for fabricating drop cables to
and from clusters, is available from Schneider Automation in two lengths. These
cables have a black boot.
Continued on next page
Description Part Number Illustration
Modbus Plus 10 ft. Drop Cable 170 MCI 021 20
Modbus Plus or Modbus RS485
10 ft. Interconnect Cable 170 MCI 021 80
Modbus Plus or Modbus RS485
30 ft. Interconnect Cable 170 MCI 020 80
